196060002 InsulKrimp by Molex

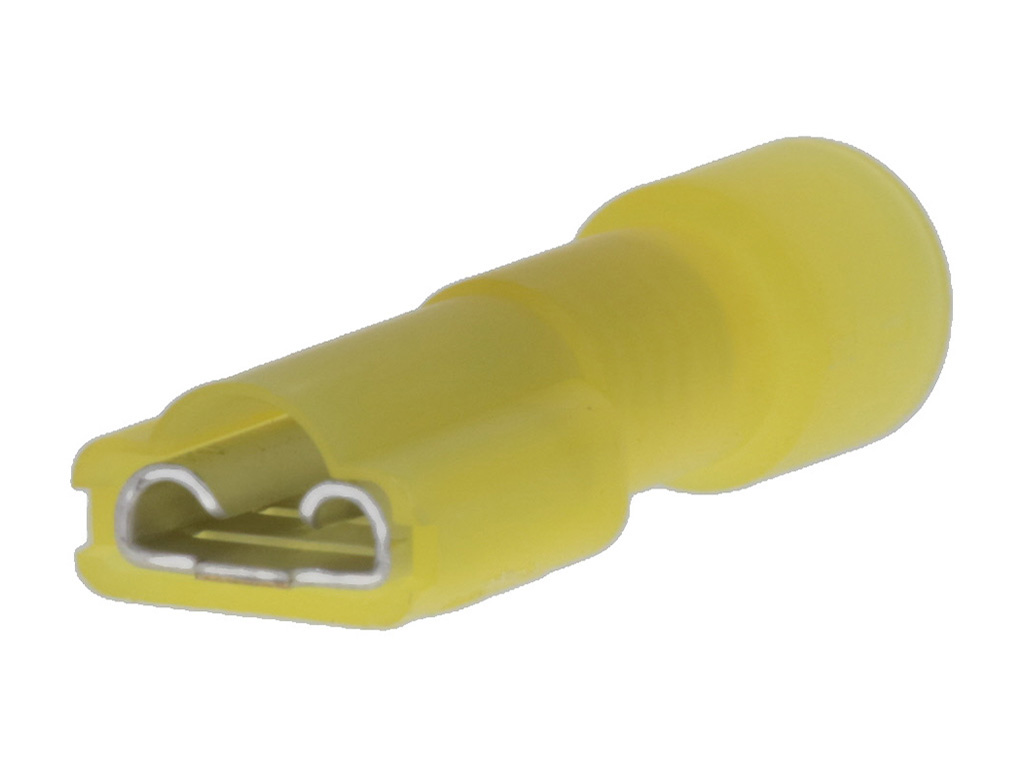

InsulKrimp Quick Disconnect, Female, for 10-12 (5.26-3.30mm²), Tab 6.35 x 0.81mm, Yellow, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19606-0002,
0196060002, C-2293 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.13
|
61,016
in stock
|
Buy Now |
|
TTI Americas
from US$0.13
|
28,084
in stock
|
Buy Now |
|
RS
from US$0.50
|
1,480
in stock
|
Buy Now |
|
element14
from US$0.25
|
695
in stock
|
Buy Now |
|
Farnell
from US$0.23
|
695
in stock
|
Buy Now |
|
|
RS Americas
from US$0.27
|
124
in stock
|
Buy Now |
|
Newark Electronics
from US$0.21
|
6
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
7,500
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,000
in stock
|
Buy Now |
|
Rutronik
from US$0.23
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.14
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.228/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 6.10mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| LOW PROF.FIQD .250 X .032 (C- 293) | Heilind Americas |
| FREC-DSC|12-10|250X032|NYL|YEL | TTI Americas |
| Molex 196060002 Spade Connector | RS |
| FEMALE DISCONNECT, 6.35MM, 12-10AWG, YEL | element14 |
| INSULKRIMP FEMALE QUICK DISCONNECT FOR 10-12 AWG WIRE BOX | RS Americas |
| Female Disconnect, 6.35Mm, 12-10Awg, Yel | Newark Electronics |
| Quick Disconnect Terminal, InsulKrimp 19606 Series, Female Quick Disconnect, 6.35mm x 0.81mm | Avnet Abacus |
| 16B HV Cover W/Gkt 1Lev | Rutronik |
| Molex 196060002 Flachsteckhülse 1 St. Bulk | Conrad |
