192770002 Avikrimp,Quixon by Molex

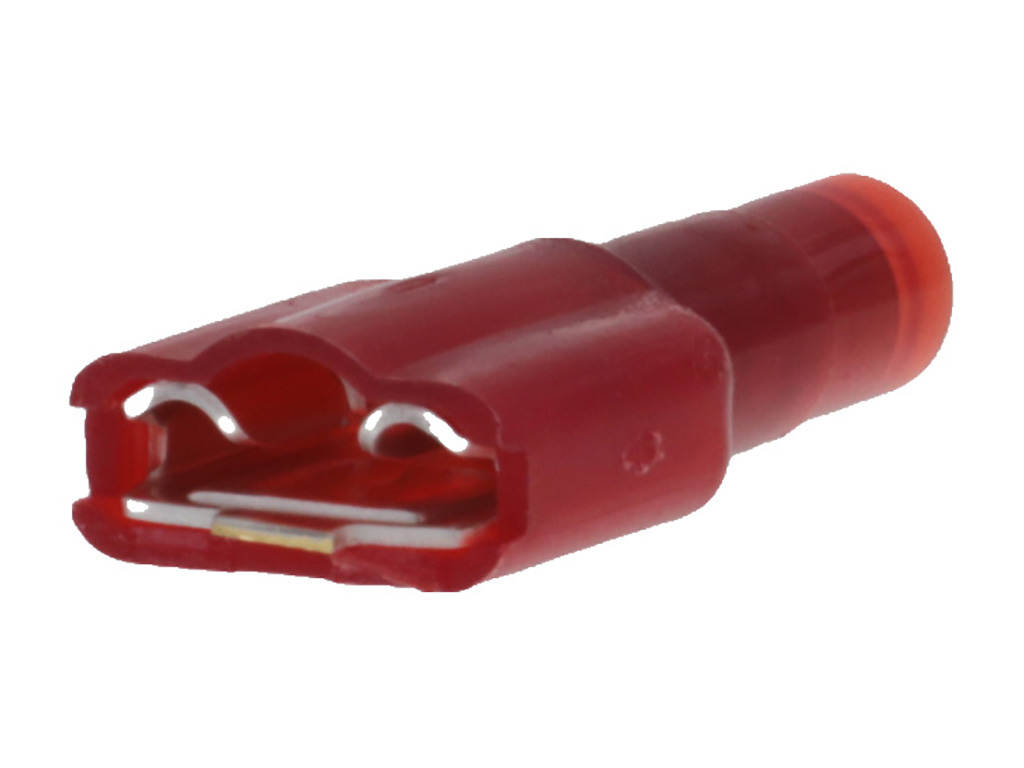

Quixon Quick Disconnect, Avikrimp Style, Female, Fully Insulated Red, 22-18 AWG, Loose, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19277-0002,
0192770002, AA-5261-LIF |
Where to Buy
Prices starting from US$0.15
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.31
|
1,125
in stock
|
Buy Now |
|
RS Americas
from US$0.51
|
151
in stock
|
Buy Now |
|
Newark Electronics
from US$0.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.21
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.56
|
0
in stock
|
Buy Now |
|
Sager
from US$0.23
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.15
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.19
|
0
in stock
|
Buy Now |
|
EME
from US$0.20
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp,Quixon |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.031/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.41mm |
| Tab Width | 7.87mm |
| Temperature Range Operating | -55° to +105°C |
| Wire Insulation Diameter | 3.00mm |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FREC-DSC|22-18|250X032|NYL|RED | TTI Americas |
| QUIXON QUICK DISCONNECT AVIKRIMP FEMALE FULLY INSULATED RED 18-22 AWG LOOSE | RS Americas |
| Female Disconnect, 6.35Mm, 22-18Awg, Red | Newark Electronics |
| Molex 192770002 Flachsteckhülse 1 St. Bulk | Conrad |
| Terminals FREC-DSC 22-18 250X032 NYL RED | Sager |
| .250X.032 FEM FIQD AVIKR 22-1 QUIXON | Heilind Americas |
| .250X.032 FEM FIQD AVIKR 22-18 QUIXON | Farnell |
