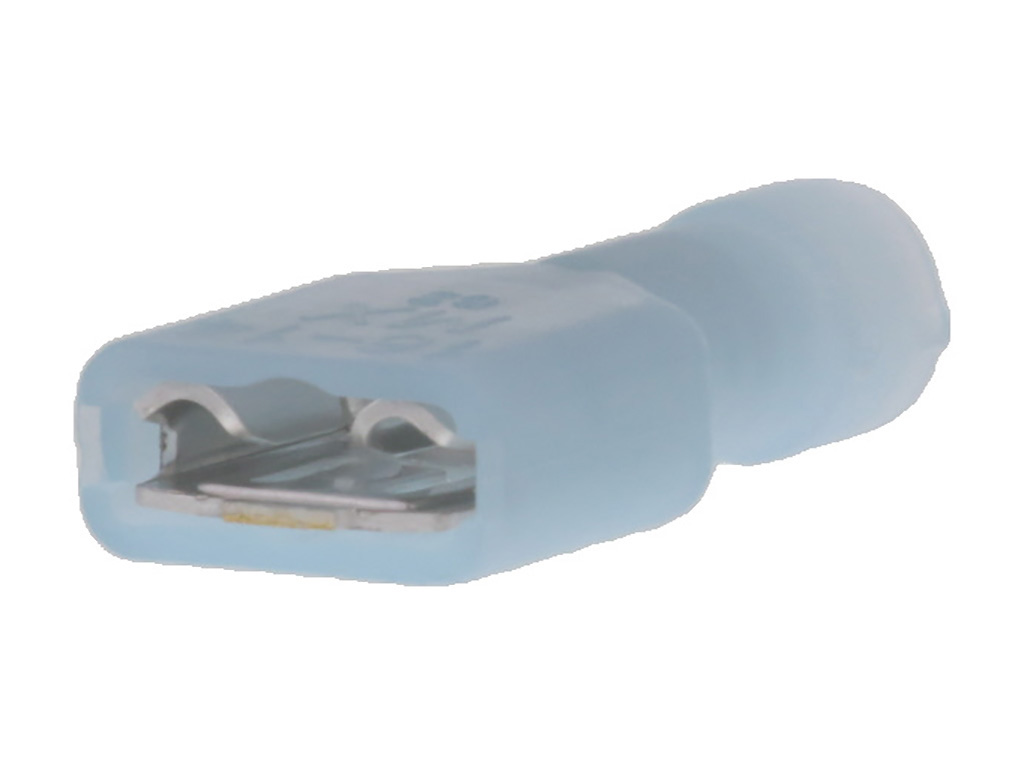

192760005 InsulKrimp,Quixon by Molex
Quixon Quick Disconnect, InsulKrimp Style, Female, Fully Insulated Blue, 16-14 AWG, Loose, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19276-0005,
0192760005, BB-2206-LIF |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.29
|
3,300
in stock
|
Buy Now |
|
element14
from US$0.25
|
3,300
in stock
|
Buy Now |
|
Farnell
from US$0.26
|
3,300
in stock
|
Buy Now |
|
Heilind Americas
from US$0.19
|
2,413
in stock
|
Buy Now |
|
TTI Americas
from US$0.18
|
1,588
in stock
|
Buy Now |
|
TME
from US$0.17
|
693
in stock
|
Buy Now |
|
RS Americas
from US$0.33
|
291
in stock
|
Buy Now |
|
Avnet America
from US$0.22
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp,Quixon |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.943/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.41mm |
| Tab Width | 7.87mm |
| Temperature Range Operating | -55° to +105°C |
| Wire Insulation Diameter | 4.06mm |
| Wire Size Awg | 14, 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Female Disconnect, 6.35Mm, 16-14Awg, Blu | Newark Electronics |
| FEMALE DISCONNECT, 6.35MM, 16-14AWG, BLU | element14 |
| .250X.032 FEM FIQD INSLK 16-1 QUIXON | Heilind Americas |
| FREC-DSC|16-14|250X032|NYL|BLU | TTI Americas |
| Terminal: flat | TME |
| QUIXON QUICK DISCONNECT INSULKRIMP FEMALE FULLY INSULATED BLUE 14-16 AWG LOOSE | RS Americas |
| Molex 192760005 Flachsteckhülse 1 St. Bulk | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 192760005?
Additional datasheets, footprints and schematics for 192760005 are listed on our Part Details page. You can also find images and similar parts to 192760005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 192760005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 192760005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 192760005 fall under?
The 192760005 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 192760005 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 192760005 you can contact the distributor directly for product support, shipping queries etc.
Is the 192760005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 192760005 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Heilind Americas and TTI Americas have stock available or on a lead time for 192760005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 192760005 often in real-time on the comparison pages.
What if I can't find stock of 192760005?
You can fill out our help required form which you can use to request a quote for 192760005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
