192760002 InsulKrimp,Quixon by Molex

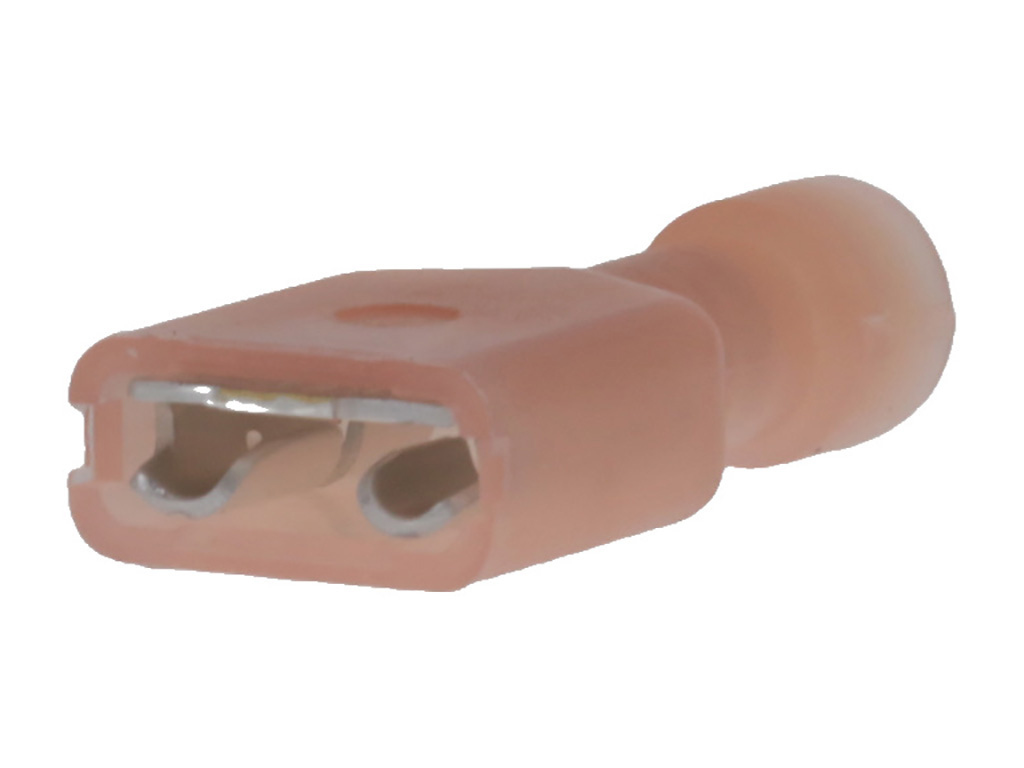

Quixon Quick Disconnect, InsulKrimp Style, Female, Fully Insulated Red, 22-18 AWG, Loose, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19276-0002,
0192760002, AA-2201-LIF |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.15
|
5,075
in stock
|
Buy Now |
|
FDH Electronics
from US$0.30
|
79
in stock
|
Buy Now |
|
Newark Electronics
from US$0.19
|
0
in stock
|
Buy Now |
|
TME
from US$0.15
|
0
in stock
|
Buy Now |
|
element14
from US$0.26
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.12
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.22
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp,Quixon |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.920/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.41mm |
| Tab Width | 7.87mm |
| Temperature Range Operating | -55° to +105°C |
| Wire Insulation Diameter | 3.43mm |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FREC-DSC|22-18|250X032|NYL|RED | TTI Americas |
| Contacts | FDH Electronics |
| Terminals .250X.032 Fem Fiqd Insulk 22-18 Quixon Rohs Compliant: Yes |Molex 19276-0002 | Newark Electronics |
| Terminal: flat | TME |
| FEMALE DISCONNECT, 6.35MM, 22-18AWG, RED | element14 |
| Molex 192760002 Flachsteckhülse 1 St. | Conrad |
| .250X.032 FEM FIQD INSLK 22-1 QUIXON | Heilind Americas |
| FEMALE DISCONNECT, 6.35MM, 22-18AWG | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 192760002?
Additional datasheets, footprints and schematics for 192760002 are listed on our Part Details page. You can also find images and similar parts to 192760002 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 192760002 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 192760002 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 192760002 fall under?
The 192760002 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 192760002 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 192760002 you can contact the distributor directly for product support, shipping queries etc.
Is the 192760002 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 192760002 have stock available?
Authorised distributors including TTI Americas, FDH Electronics, Newark Electronics, TME and element14 have stock available or on a lead time for 192760002.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 192760002 often in real-time on the comparison pages.
What if I can't find stock of 192760002?
You can fill out our help required form which you can use to request a quote for 192760002 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
