192730008 Krimptite,Quixon by Molex

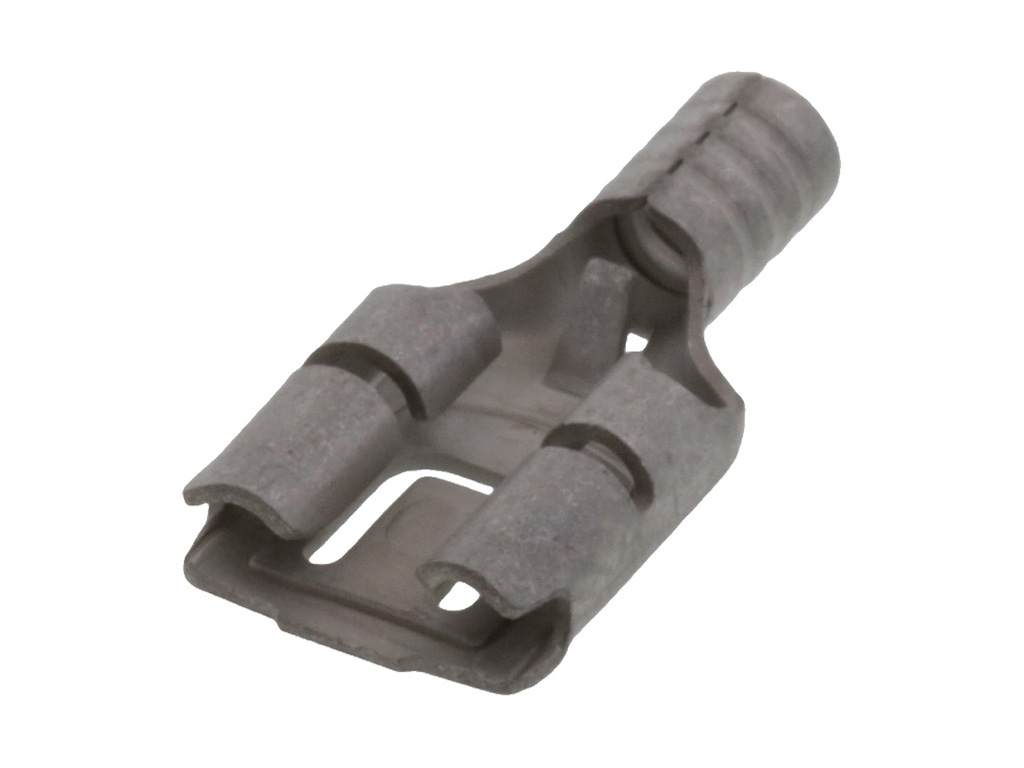

Quixon Quick Disconnect, Krimptite Style, Female, Un-insulated, 16-14 AWG, Loose, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19273-0008,
0192730008, BB-1141-LIF |
Where to Buy
Prices starting from US$0.0454
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.07
|
608
in stock
|
Buy Now |
|
Newark Electronics
from US$0.08
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.05
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.11
|
0
in stock
|
Buy Now |
|
element14
from US$0.08
|
0
in stock
|
Buy Now |
|
Sager
from US$0.0470
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0481
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0454
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.06
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Krimptite,Quixon |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | Per Wire Specification |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | No |
| Insulation | None |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.648/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.41mm |
| Tab Width | 7.87mm |
| Temperature Range Operating | -55° to +105°C |
| Wire Size Awg | 14, 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NREC-DSC|16-14|250X032|N-I|SN | TTI Americas |
| Female Quick Disconn, 6.35Mm, 16-14Awg | Newark Electronics |
| Quick Disconnect 14-16AWG F 17mm 5.3mm Tin Bag | Avnet America |
| QUIXON QUICK DISCONNECT | RS Americas |
| FEMALE QUICK DISCONNECT, 0.250", UNINSULATED | element14 |
| Terminals NREC-DSC 16-14 250X032 N-I SN | Sager |
| .250X032 FEM QD KRIMPT QUIXO 16-14 SPM | Heilind Americas |
| .250X032 FEM QD KRIMPT QUIXON 16-14 SPM | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 192730008?
Additional datasheets, footprints and schematics for 192730008 are listed on our Part Details page. You can also find images and similar parts to 192730008 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 192730008 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 192730008 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 192730008 fall under?
The 192730008 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 192730008 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 192730008 you can contact the distributor directly for product support, shipping queries etc.
Is the 192730008 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 192730008 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, Avnet America, RS Americas and element14 have stock available or on a lead time for 192730008.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 192730008 often in real-time on the comparison pages.
What if I can't find stock of 192730008?
You can fill out our help required form which you can use to request a quote for 192730008 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
