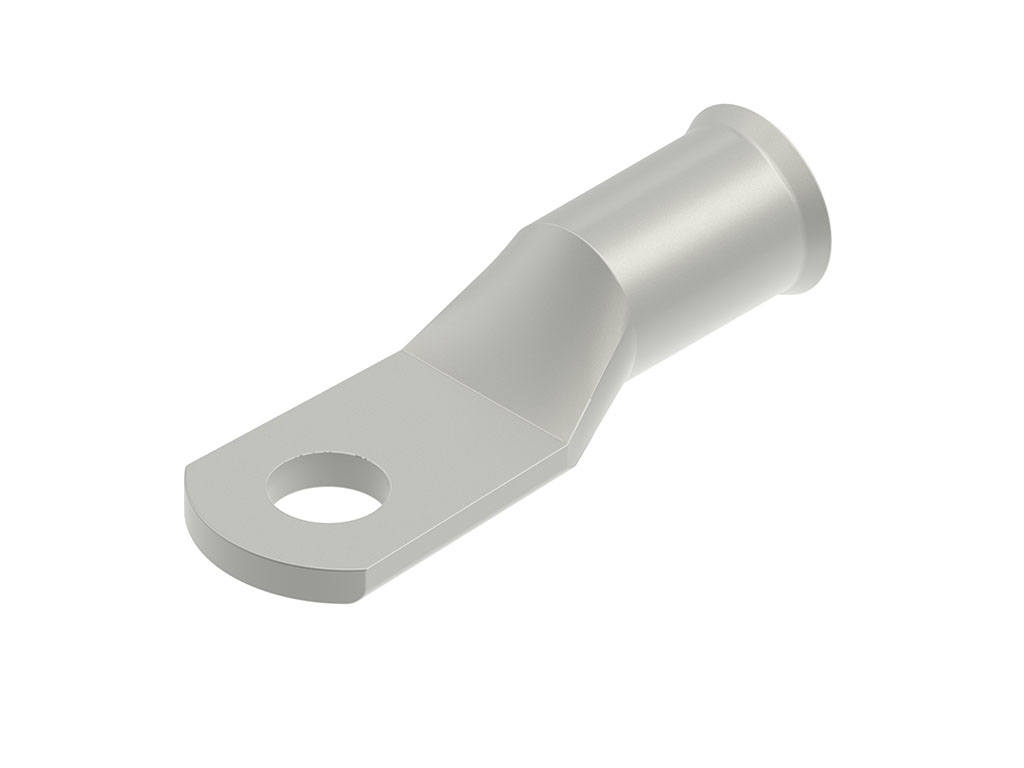

192210424 Battery Cable Lug by Molex
Compression Style Ring Tongue Terminal for 6 AWG Wire, Stud Size 10 (M5), Plated, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19221-0424,
0192210424, BCL-610-PL |
Where to Buy
Prices starting from US$0.41
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.74
|
363
in stock
|
Buy Now |
|
element14
from US$0.62
|
363
in stock
|
Buy Now |
|
Farnell
from US$0.66
|
363
in stock
|
Buy Now |
|
TTI Americas
from US$0.71
|
273
in stock
|
Buy Now |
|
RS Americas
from US$0.41
|
48
in stock
|
Buy Now |
|
Conrad
from US$0.66
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.56
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.79
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Battery Cable Lug |
|---|
Physical |
|
|---|---|
| Barrel Type | Closed |
| Insulation | None |
| Material Plating Mating | Tin |
| Net Weight | 6.136/g |
| Plating Min Mating | 4.064µm |
| Plating Min Termination | 4.064µm |
| Stud Size | 10 (M5) |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | N/A |
| Wire Size Awg | 6 |
| Wire Size Mm | 10.50-16.80 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal, Compression Lug, M5, 6Awg | Newark Electronics |
| TERMINAL, COMPRESSION LUG, M5, 6AWG | element14 |
| RING-LUG|06AWG|#10 |CU |SN | TTI Americas |
| Molex 192210424 Ringkabelschuh Loch-Ø=5 mm 1 St. Bulk | Conrad |
| EYELET TERMINAL PLTD(BCL-610-P | TTI Europe |
| EYELET TERMINAL PLTD (BCL-610 PL) SPM | Heilind Americas |
