192040026 InsulKrimp by Molex

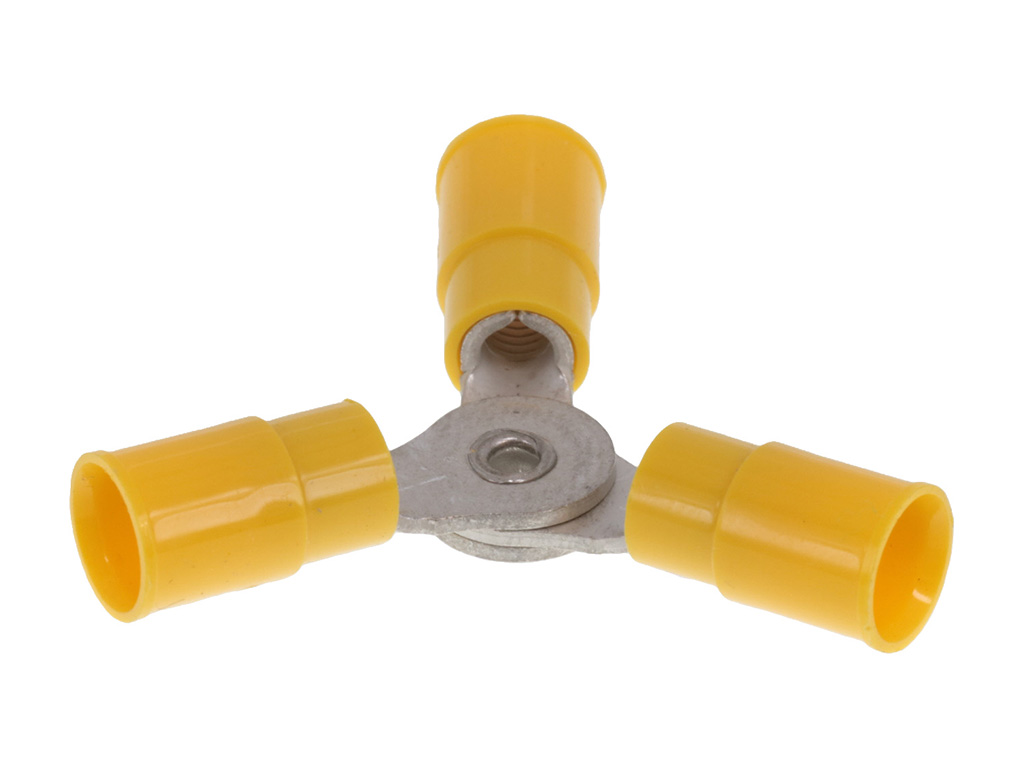

InsulKrimp 3 Way Splice for 12-10 AWG Wire, Carton
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19204-0026,
0192040026, C-2YCX |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Natural |
| Insulation | PVC |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 6.002/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -40° to +105°C |
| Wire Insulation Diameter | 6.35mm max. |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 3.30-5.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Tip: butt splice | TME |
| Molex 19204-0026 Stoßverbinder 1 St. Bag | Conrad |
| TERMINALS - CLOSED END SPLICE TERMINALS | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 192040026?
Additional datasheets, footprints and schematics for 192040026 are listed on our Part Details page. You can also find images and similar parts to 192040026 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 192040026 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 192040026 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 192040026 fall under?
The 192040026 is listed under Splices.
Can I view similar or alternative parts?
You can view similar parts to 192040026 when available in the Splices range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 192040026 you can contact the distributor directly for product support, shipping queries etc.
Is the 192040026 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 192040026 have stock available?
Authorised distributors including TME, Conrad, Farnell, Avnet America and Avnet Abacus have stock available or on a lead time for 192040026.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 192040026 often in real-time on the comparison pages.
What if I can't find stock of 192040026?
You can fill out our help required form which you can use to request a quote for 192040026 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
