192040025 InsulKrimp by Molex

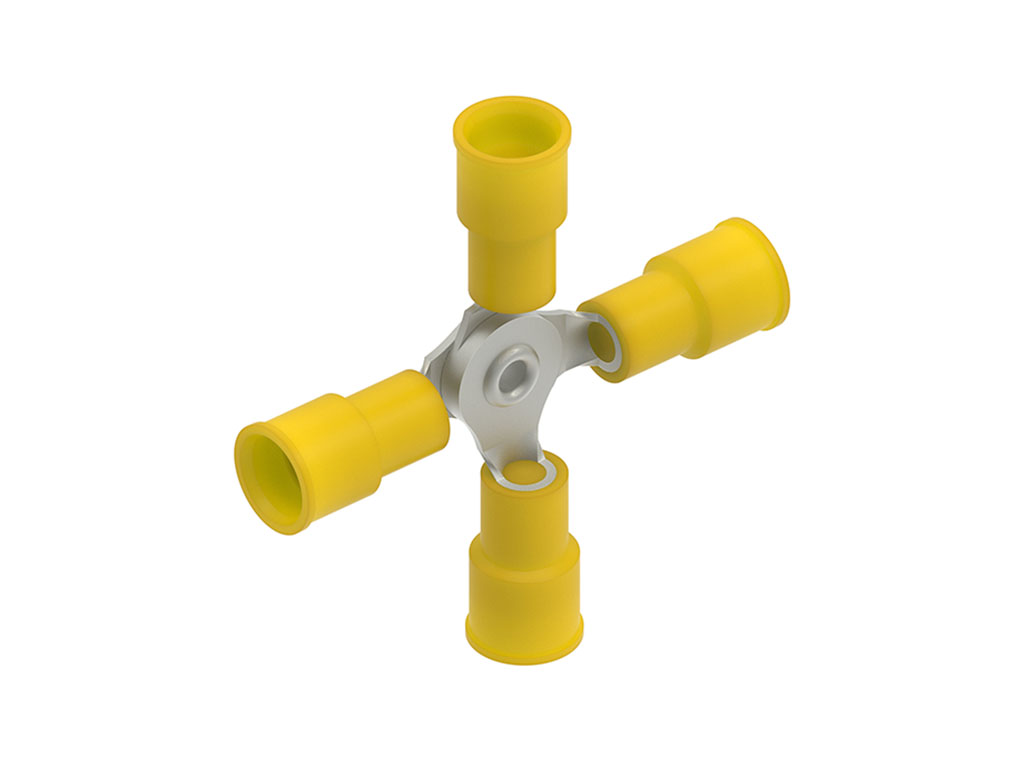

InsulKrimp 4 Way Splice for 12-10 AWG Wire, Carton
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19204-0025,
0192040025, C-2XCX |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Natural |
| Insulation | PVC |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 7.960/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -40° to +105°C |
| Wire Insulation Diameter | 6.35mm max. |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 3.30-5.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal, Closed End Splice, Nat, 10Awg | Newark Electronics |
| Molex 192040025 Stoßverbinder 1 St. Bulk | Conrad |
