192040013 InsulKrimp by Molex

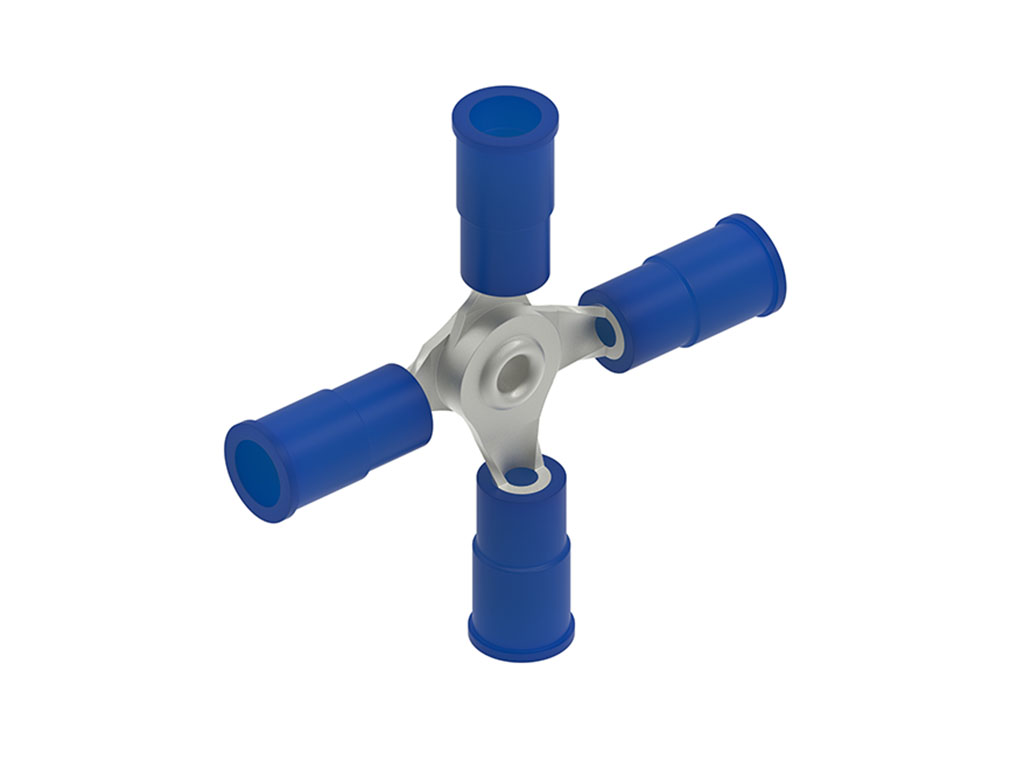

InsulKrimp 4 Way Splice for 16-14 AWG Wire, Carton
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19204-0013,
0192040013, B-2XCX |
Where to Buy
Prices starting from US$0.78
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Insulation | PVC |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 4.372/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -40° to +105°C |
| Wire Insulation Diameter | 4.45mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal, Closed End Splice, 14Awg, Blu | Newark Electronics |
| Molex 192040013 Stoßverbinder 1 St. Bulk | Conrad |
| CLOSED END SPLICE, CRIMP, 16-14AWG | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 192040013?
Additional datasheets, footprints and schematics for 192040013 are listed on our Part Details page. You can also find images and similar parts to 192040013 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 192040013 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 192040013 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 192040013 fall under?
The 192040013 is listed under Splices.
Can I view similar or alternative parts?
You can view similar parts to 192040013 when available in the Splices range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 192040013 you can contact the distributor directly for product support, shipping queries etc.
Is the 192040013 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 192040013 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, Avnet America and RS Americas have stock available or on a lead time for 192040013.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 192040013 often in real-time on the comparison pages.
What if I can't find stock of 192040013?
You can fill out our help required form which you can use to request a quote for 192040013 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
