191640074 Perma-Seal by Molex

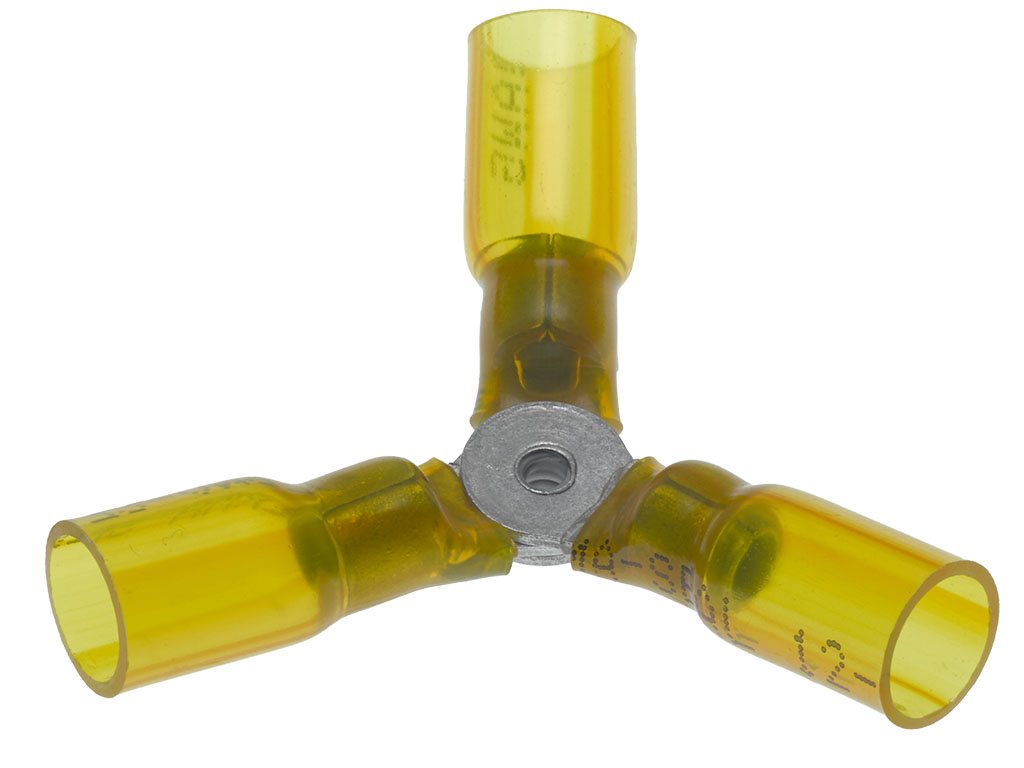

Perma-Seal 3-Way Connector Assembly for 12-10 AWG Wire, Carton
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0074,
0191640074, SC-2YCX |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Insulation | NiAc |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 6.344/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -55° to +125°C |
| Wire Insulation Diameter | 7.87mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal, Closed End Splice, Yel, 10Awg | Newark Electronics |
| Molex 191640074 Stoßverbinder 1 St. Bulk | Conrad |
| QUICK CONNECT AND DISCONNECT TERMINALS | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 191640074?
Additional datasheets, footprints and schematics for 191640074 are listed on our Part Details page. You can also find images and similar parts to 191640074 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 191640074 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 191640074 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 191640074 fall under?
The 191640074 is listed under Splices.
Can I view similar or alternative parts?
You can view similar parts to 191640074 when available in the Splices range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 191640074 you can contact the distributor directly for product support, shipping queries etc.
Is the 191640074 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 191640074 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, Lake-View Electronics and Avnet America have stock available or on a lead time for 191640074.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 191640074 often in real-time on the comparison pages.
What if I can't find stock of 191640074?
You can fill out our help required form which you can use to request a quote for 191640074 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
