191640059 Perma-Seal by Molex

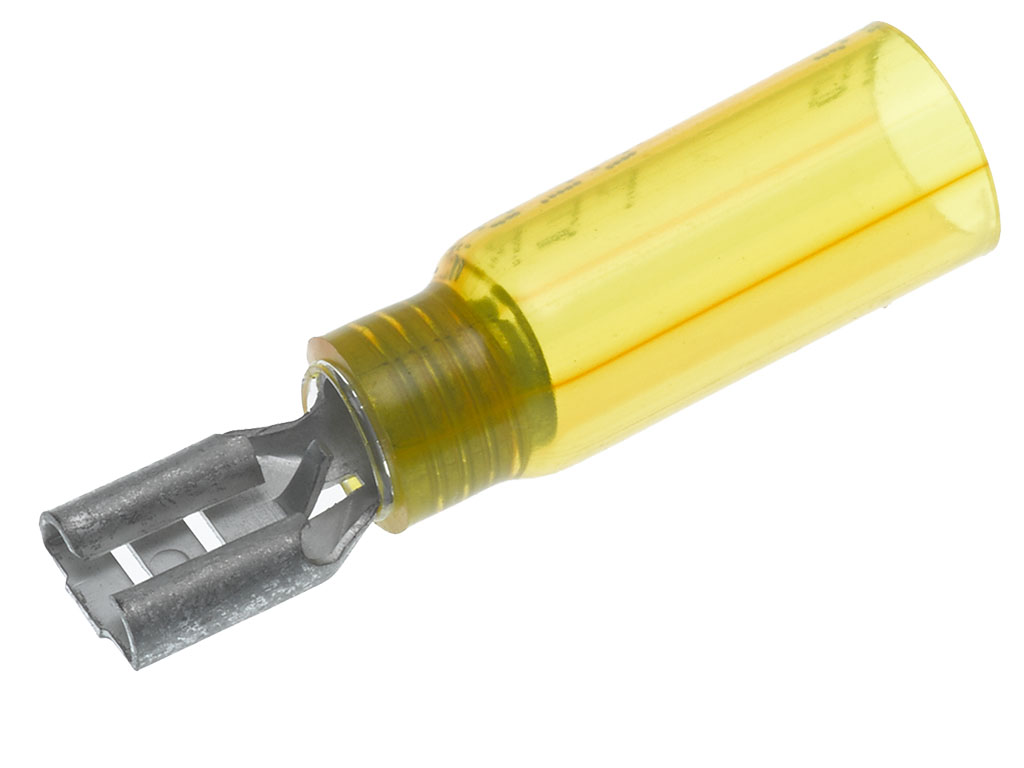

Perma-Seal Female Quick Disconnect for 12-10 AWG Wire, Tab Size 6.35 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0059,
0191640059, SC-2143 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.37
|
2,411
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,780
in stock
|
Buy Now |
|
Newark Electronics
from US$0.48
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.50
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.68
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.61
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.58
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | NiAc |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.361/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -55° to +125°C |
| Wire Insulation Diameter | 7.62mm max. |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 4.00-6.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Qd Perma-Seal .250 X .032 (Sc-2143) Rohs Compliant: Yes |Molex 19164-0059 | Newark Electronics |
| Quick Disconnect Terminal 10-12AWG F 34.5mm 7.75mm Tin Bag | Avnet America |
| Molex 191640059 Flachsteckhülse 1 St. Bulk | Conrad |
| BREC-DSC|12-10|250X032|H/S|YEL | TTI Americas |
| QD PERMA-SEAL .250 X .032 (SC 2143) | Heilind Americas |
| QD PERMA-SEAL .250 X .032 (SC-2143) | Farnell |
