191640053 Perma-Seal by Molex

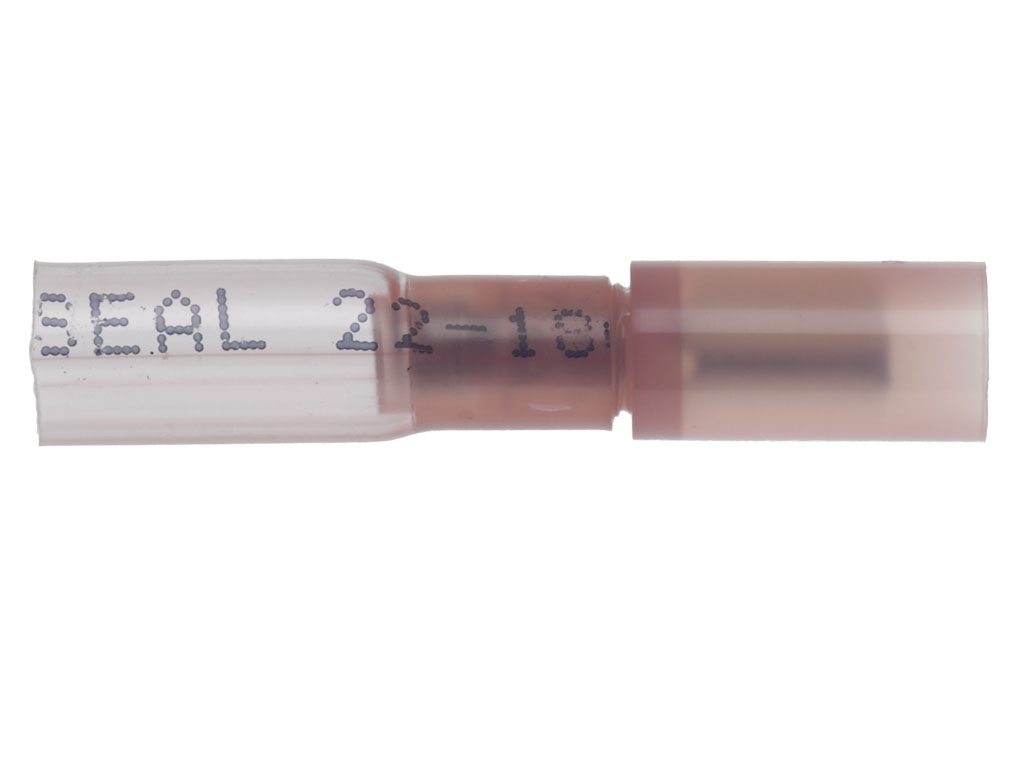

Perma-Seal Snap Receptacle for 22-18 AWG Wire, Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0053,
0191640053, SBRA-8180N |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.42
|
40,085
in stock
|
Buy Now |
|
TTI Americas
from US$0.43
|
18,110
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
6,156
in stock
|
Buy Now |
|
RS
from US$1.64
|
14
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
13,783
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.66
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
element14
from US$0.62
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.89
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | NiAc |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.339/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.30mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SSKT-DSC|22-18|.180 |H/S|RED | TTI Americas |
| NYL. SNAP PLUG REC. PERMA-SEA (SBRA-818 | Heilind Americas |
| Molex 19164-0053 | RS |
| Terminal, Female Bullet, 4.57Mm, 18Awg | Newark Electronics |
| TERMINAL, FEMALE BULLET, 4.57MM, 18AWG | element14 |
| Molex 191640053 Flachsteckhülse 1 St. Bulk | Conrad |
| NYL. SNAP PLUG REC. PERMA-SEAL (SBRA-818 | Farnell |
