191640048 Perma-Seal by Molex

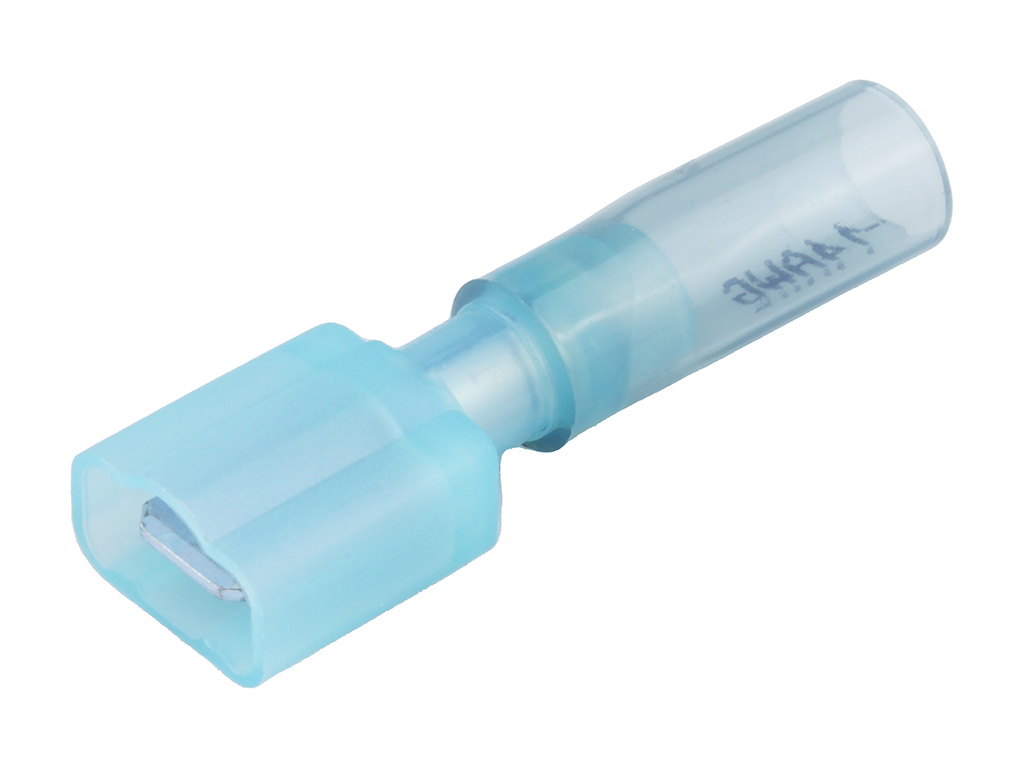

Perma-Seal Male Quick Disconnect Tab for 16-14 AWG Wire, Tab Size 6.35 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0048,
0191640048, SBB-9262 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.42
|
20,014
in stock
|
Buy Now |
|
Heilind Americas
from US$0.42
|
8,126
in stock
|
Buy Now |
|
TTI Americas
from US$0.44
|
2,774
in stock
|
Buy Now |
|
RS
from US$1.53
|
250
in stock
|
Buy Now |
|
|
RS Americas
from US$0.89
|
70
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,950
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.68
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | NiAc |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Zinc Chromate |
| Material Plating Termination | Zinc Chromate |
| Material Resin | Nylon |
| Net Weight | 1.724/g |
| Orientation | Straight |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -55° to +125°C |
| Wire Insulation Diameter | 4.32mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.00-2.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 16-14 MALE COUPLER PERMA-SEAL (SBB-9262) | Heilind Americas |
| FTAB-DSC|16-14|250X032|H/S|BLU | TTI Americas |
| Molex 191640048 Splice Connector | RS |
| Male Disconnect, 6.35Mm, 16-14Awg, Blu | Newark Electronics |
| Molex 19164-0048 Flachstecker 1 St. Bag | Conrad |
| MALE DISCONNECT, 6.35MM, 16-14AWG, BLU | Farnell |
| Quick Disconnect Terminal, Perma-Seal 19164, Male Quick Disconnect, 6.35mm x 0.81mm, 0.25" x 0.032""" | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 191640048?
Additional datasheets, footprints and schematics for 191640048 are listed on our Part Details page. You can also find images and similar parts to 191640048 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 191640048 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 191640048 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 191640048 fall under?
The 191640048 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 191640048 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 191640048 you can contact the distributor directly for product support, shipping queries etc.
Is the 191640048 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 191640048 have stock available?
Authorised distributors including Waytek, Heilind Americas, TTI Americas, RS and RS Americas have stock available or on a lead time for 191640048.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 191640048 often in real-time on the comparison pages.
What if I can't find stock of 191640048?
You can fill out our help required form which you can use to request a quote for 191640048 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
