191640042 Perma-Seal by Molex

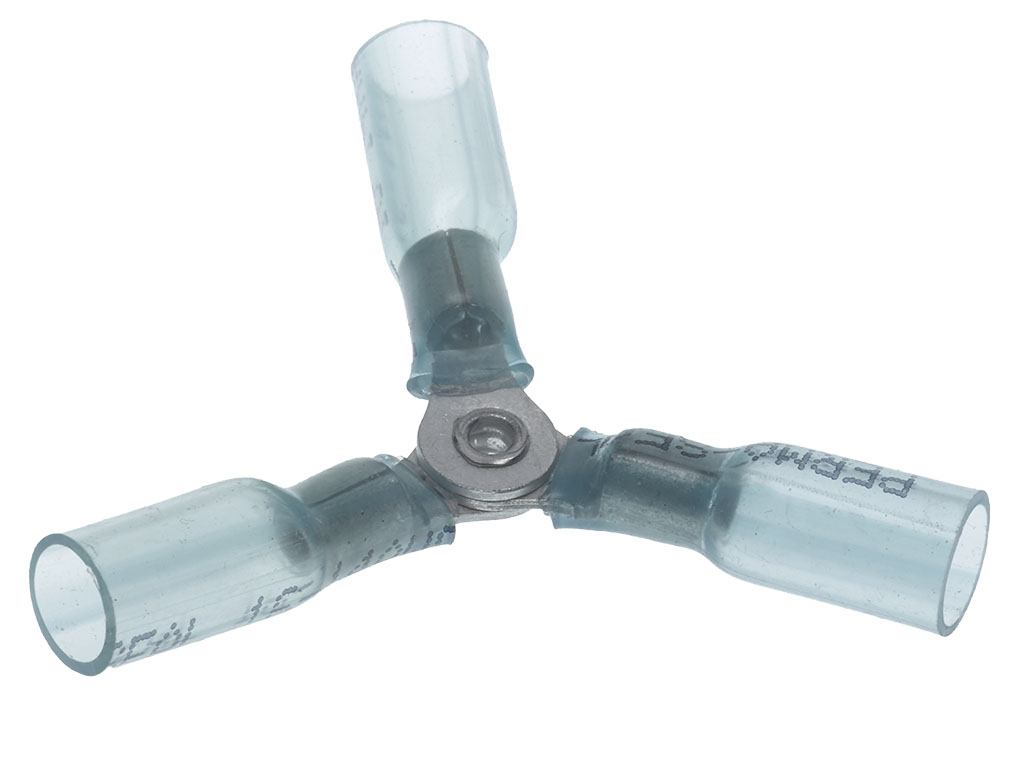

Perma-Seal 3-Way Connector Assembly for 16-14 AWG Wire, Carton
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0042,
0191640042, SB-2YCX |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Insulation | NiAc |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 3.779/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Temperature Range Operating | -55° to +125°C |
| Wire Insulation Diameter | 5.97mm max. |
| Wire Size Awg | 14, 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 3 Way Perma-Seal (Sb-2Ycx) |Molex 19164-0042 | Newark Electronics |
