191640017 Perma-Seal by Molex

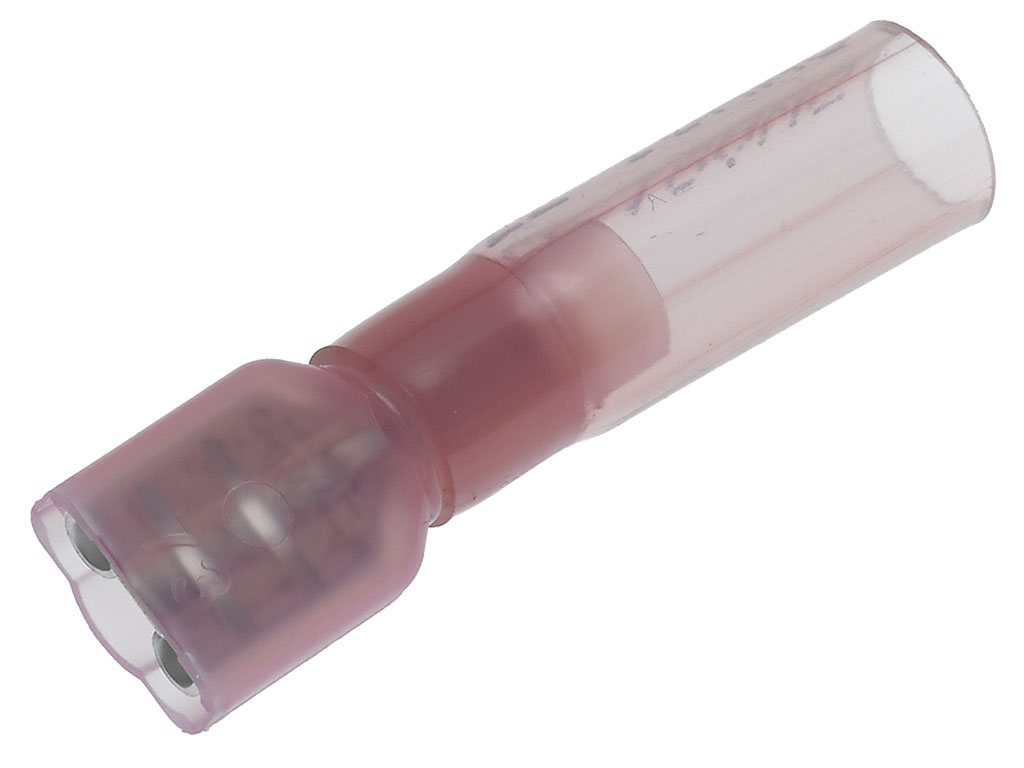

Perma-Seal Female Quick Disconnect Receptacle for 22-18 AWG Wire, Tab Size 6.35 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19164-0017,
0191640017, SAA-9261 |
Where to Buy
Prices starting from US$0.31
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.41
|
58,906
in stock
|
Buy Now |
|
Heilind Americas
from US$0.31
|
29,445
in stock
|
Buy Now |
|
TTI Americas
from US$0.32
|
21,858
in stock
|
Buy Now |
|
Farnell
from US$0.72
|
5,723
in stock
|
Buy Now |
|
Conrad
from US$0.68
|
5,358
in stock
|
Buy Now |
|
TME
from US$0.63
|
4,358
in stock
|
Buy Now |
|
RS
from US$1.61
|
215
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
5,900
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.61
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.79
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.44
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Perma-Seal |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | NiAc |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.379/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -55° to +125°C |
| Wire Insulation Diameter | 4.32mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 22-18 FEM COUPLER PERMA-SEAL SAA-9261) | Heilind Americas |
| FREC-DSC|22-18|250X032|H/S|RED | TTI Americas |
| CRIMP TERMINALS - CONNECT AND DISCONNECT | Farnell |
| Molex 191640017 Flachsteckhülse 1 St. Bulk | Conrad |
| Terminal: flat | TME |
| Molex 191640017 Splice Connector | RS |
| Quick Disconnect Terminal 18-22AWG F 41.4mm 9.65mm Tin Box | Avnet Abacus |
| Female Disconnect, 6.35Mm, 22-18Awg, Red | Newark Electronics |
| FEMALE QUICK DISC REC 18-22AWG | TTI Europe |
