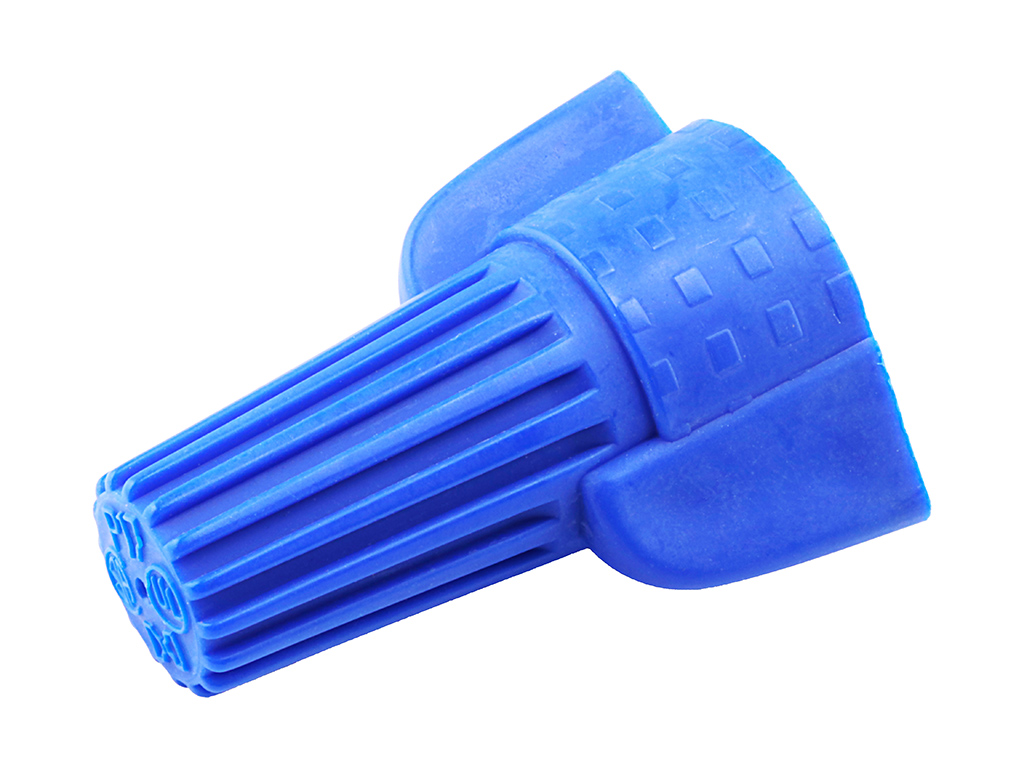

191600047 Wing Lock by Molex
Wing Lock Splice for 14-6 AWG Wire, Blue, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19160-0047,
0191600047, WL-B |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.17
|
5,000
in stock
|
Buy Now |
|
Farnell
from US$0.26
|
700
in stock
|
Buy Now |
|
Newark Electronics
from US$0.14
|
627
in stock
|
Buy Now |
|
element14
from US$0.18
|
627
in stock
|
Buy Now |
|
Waytek
-
|
1,311
in stock
|
Buy Now |
|
Avnet America
from US$0.18
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.29
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.15
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Wing Lock |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Insulation | Nylon (PA) |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 7.596/g |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 18.80mm max. |
| Wire Size Awg | 6, 8, 10, 12, 14 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| WNUT-SPL|14+6 -4X14 |NYL|BLU | TTI Americas |
| CLOSED END SPLICE, CRIMP, 14-6AWG | Farnell |
| 14-6 Blue Wing Lock (Wl-B)Spm Rohs Compliant: Yes |Molex 19160-0047 | Newark Electronics |
| 14-6 BLUE WING LOCK (WL-B)SPM 55H4899 | element14 |
| 14-6 BLUE WING LOCK (WL-B)SPM | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 191600047?
Additional datasheets, footprints and schematics for 191600047 are listed on our Part Details page. You can also find images and similar parts to 191600047 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 191600047 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 191600047 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 191600047 fall under?
The 191600047 is listed under Splices.
Can I view similar or alternative parts?
You can view similar parts to 191600047 when available in the Splices range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 191600047 you can contact the distributor directly for product support, shipping queries etc.
Is the 191600047 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 191600047 have stock available?
Authorised distributors including TTI Americas, Farnell, Newark Electronics, element14 and Waytek have stock available or on a lead time for 191600047.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 191600047 often in real-time on the comparison pages.
What if I can't find stock of 191600047?
You can fill out our help required form which you can use to request a quote for 191600047 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
