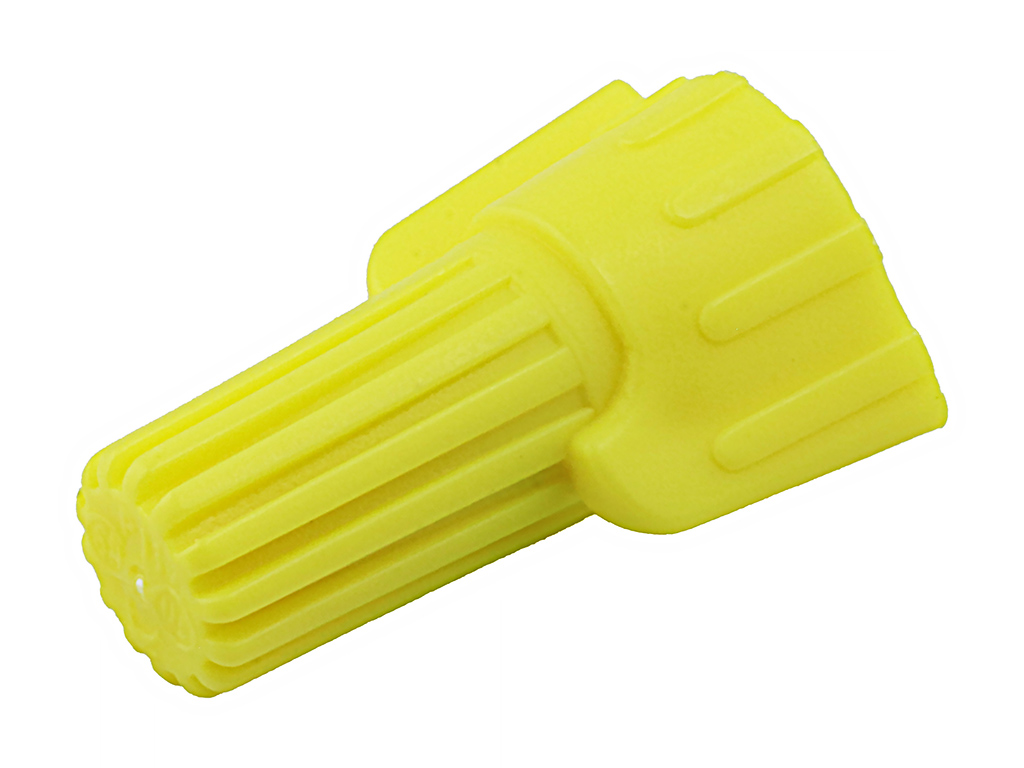

191600044 Wing Lock by Molex
Wing Lock Splice for 18-10 AWG Wire, Yellow, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19160-0044,
0191600044, WL-Y |
Where to Buy
Prices starting from US$0.05
Specifications
| Product Name | Wing Lock |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Insulation | Nylon (PA) |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.830/g |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 9.91mm max. |
| Wire Size Awg | 10, 12, 14, 16, 18 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 18-10 Awg Yellow Wing Lock (Wl-Y)Spm |Molex 19160-0044 | Newark Electronics |
| 18-10 AWG YELLOW WING LOCK (W -Y)SPM | Heilind Americas |
| TERMINAL, CLOSED END SPLICE, 10AWG, YEL | Farnell |
| 18-10 AWG YELLOW WING LOCK WL- CLOSED END CONNECTOR SER | Heilind Europe |
