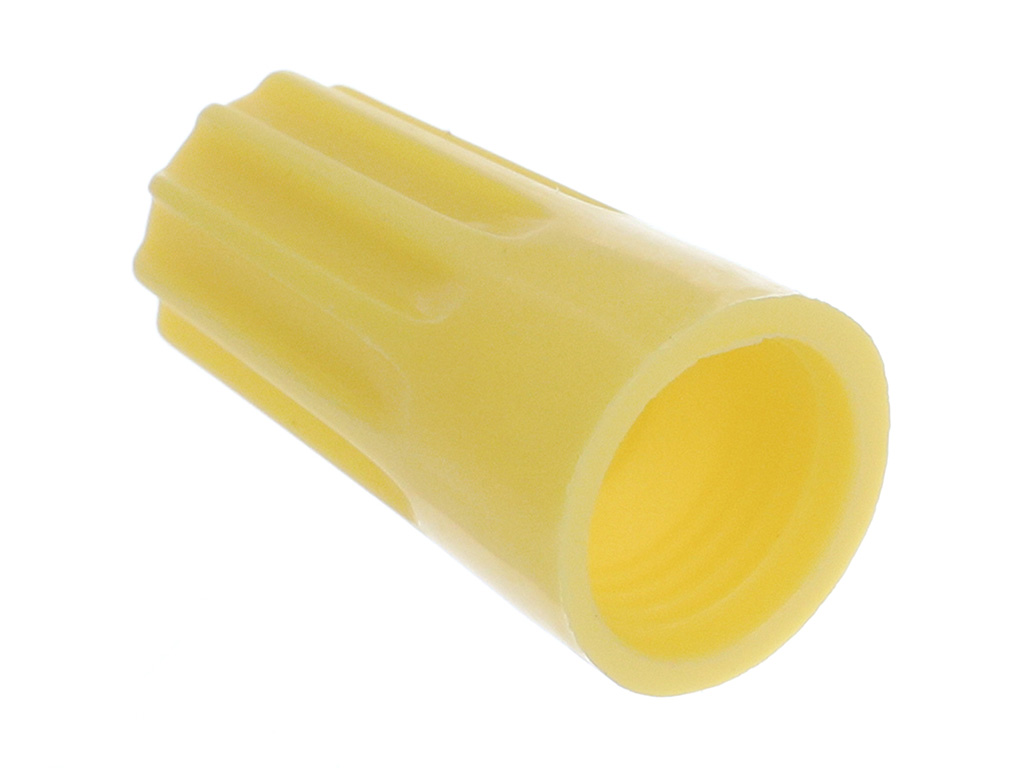

191600042 Closed-End Twist Lock by Molex
Twist Lock Splice for 22-10 AWG Wire, Yellow, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19160-0042,
0191600042, TL-Y |
Where to Buy
Prices starting from US$0.0440
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Asia
from US$0.0480
|
4,000
in stock
|
Buy Now |
|
TME
from US$0.06
|
2,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.0440
|
2,000
in stock
|
Buy Now |
|
Farnell
from US$0.06
|
1,800
in stock
|
Buy Now |
|
Waytek
-
|
225,628
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
14,822
in stock
|
Buy Now |
|
Avnet America
from US$0.0447
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.16
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.05
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Closed-End Twist Lock |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Insulation | Nylon (PA) |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.984/g |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 11.18mm max. |
| Wire Size Awg | 10, 12, 14, 16, 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| WNUT-SPL|18+14-4X14 |NYL|NAT | TTI Asia |
| Tip: butt splice | TME |
| WNUT-SPL|22+10-4X14 |NYL|YEL | TTI Americas |
| TWIST LOCK SPLICE, 22-10 AWG, YELLOW | Farnell |
| Molex 191600042 Verschlusskappe 1 St. Bulk | Conrad |
| 22-10 AWG YELLOW TWIST LOCK ( L-Y)SPM | Heilind Europe |
