191540022 InsulKrimp by Molex

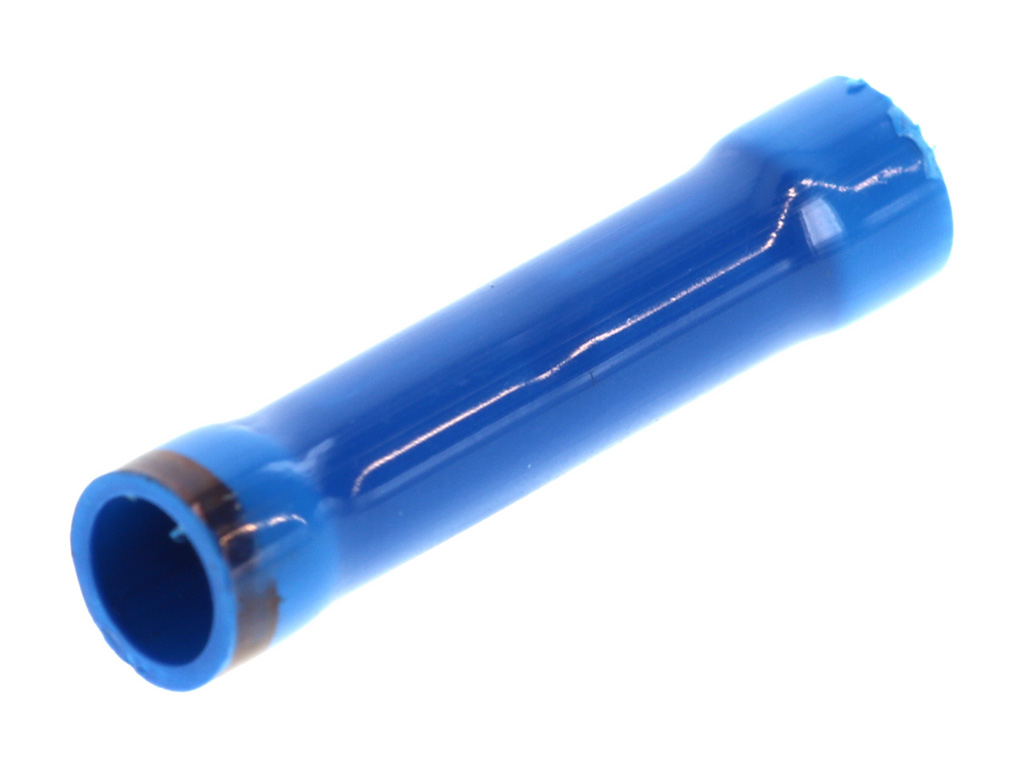

InsulKrimp Step Down Butt Splice from 16/14 to 22/18 AWG Wire, Blue with Red Stripe, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19154-0022,
0191540022, BA-631X |
Where to Buy
Prices starting from US$0.57
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.57
|
21,581
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
6,058
in stock
|
Buy Now |
|
TME
from US$0.99
|
6,058
in stock
|
Buy Now |
|
Conrad
from US$0.92
|
6,058
in stock
|
Buy Now |
|
Farnell
from US$0.95
|
5,453
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,300
in stock
|
Buy Now |
|
Avnet America
from US$0.59
|
0
in stock
|
Buy Now |
|
element14
from US$0.58
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.74
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.65
|
0
in stock
|
Buy Now |
|
EME
from US$1.02
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed - Brazed |
| Color Resin | Blue |
| Flammability | 94V-0 |
| Insulation | PVC |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.730/g |
| Temperature Range Operating | -40° to +105°C |
| Wire Insulation Diameter | 4.30mm max. |
| Wire Size Awg | 14, 16, 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SDWN-SPL|14>22| |VYL|B+R | TTI Americas |
| Terminals Butt Splice 14-22 Awg Step Down |Molex 19154-0022 | Newark Electronics |
| Tip: butt splice | TME |
| Molex 191540022 Stoßverbinder 1 St. Bulk | Conrad |
| CRIMP TERMINALS - BUTT SPLICE | Farnell |
| TERMINAL, BUTT SPLICE, 22AWG, BLU, 18AWG | element14 |
| 16-14 TO 22-18 BUTT SPLICE (B -631X) | Heilind Europe |
| 16-14 TO 22-18 BUTT SPLICE | TTI Asia |
