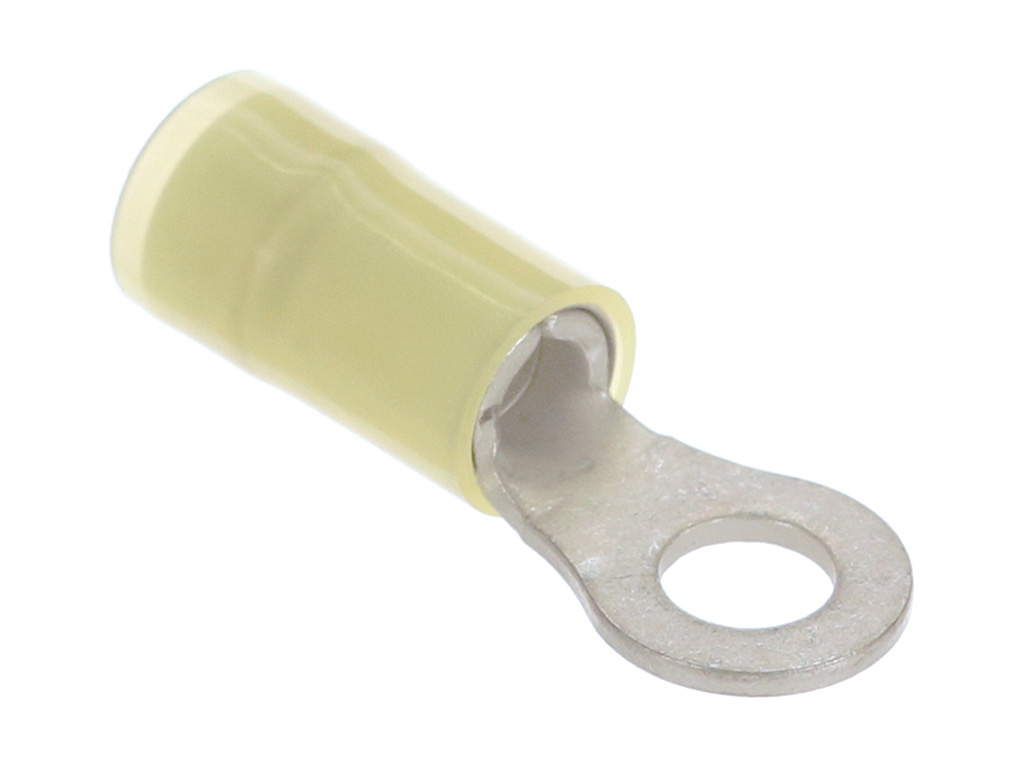

190730101 Avikrimp by Molex
AviKrimp Ring Tongue Terminal for 12-10 AWG Wire, Nylon, Stud Size 1/2" (M12), Yellow, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19073-0101,
0190730101, C-501-12 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.49
|
7,350
in stock
|
Buy Now |
|
TTI Americas
from US$0.55
|
5,750
in stock
|
Buy Now |
|
Waytek
from US$0.43
|
3,283
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
228
in stock
|
Buy Now |
|
element14
from US$0.63
|
228
in stock
|
Buy Now |
|
Farnell
from US$0.72
|
228
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Insulation | Nylon (PA) |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Net Weight | 3.438/g |
| Stud Size | 1/2" (M12) |
| Temperature Range Operating | 105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 5.72mm max. |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 4.00-6.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RING AVIKRIMP (C-501-12) | Heilind Americas |
| RING-TRM|12-10|1/2 |NYL|YEL | TTI Americas |
| Ring Avikrimp (C-501-12) Rohs Compliant: Yes |Molex 19073-0101 | Newark Electronics |
| RING AVIKRIMP (C-501-12) 57R8760 | element14 |
