190690217 Krimptite by Molex

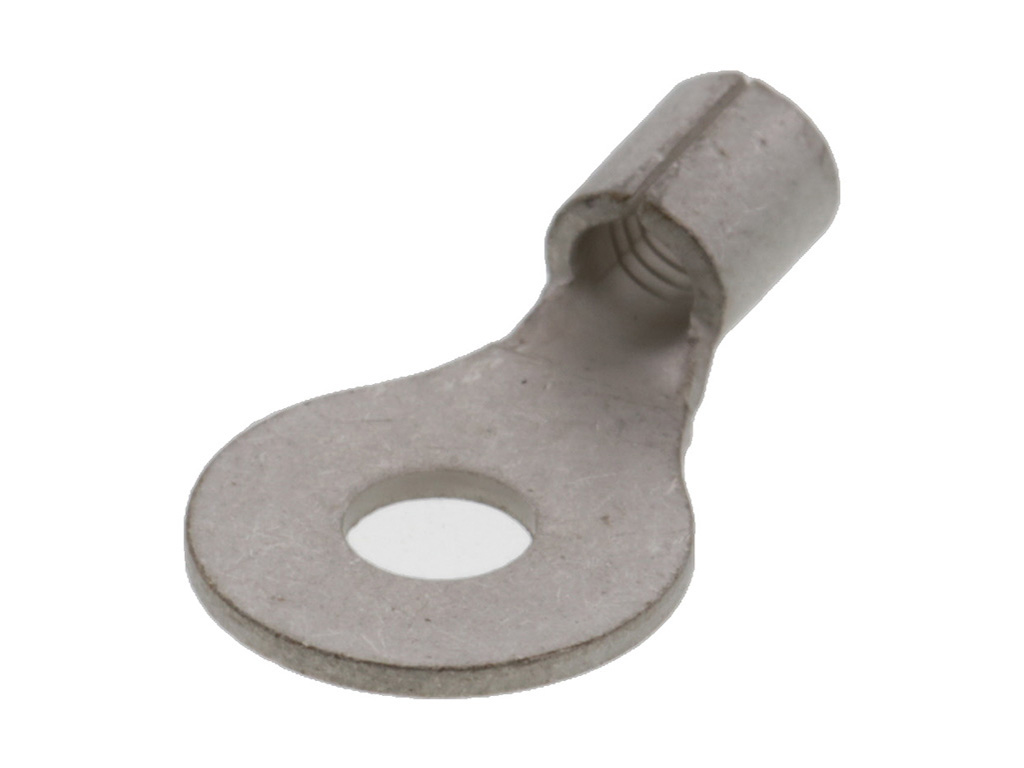

Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 10 (M5), Length 24.18mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19069-0217,
0190690217, C-130-10 |
Where to Buy
Prices starting from US$0.09
Specifications
| Product Name | Krimptite |
|---|
Physical |
|
|---|---|
| Barrel Type | Closed |
| Insulation | None |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 2.177/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Stud Size | 10 (M5) |
| Termination Interface Style | Crimp or Compression |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 4.00-6.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ring Krimptite (C-130-10) Spm |Molex 19069-0217 | Newark Electronics |
| RING-TRM|12-10|#10 |N-I|SN | TTI Americas |
| RING KRIMPTITE (C-130-10) | Heilind Americas |
| Ring Tongue Terminal 10-12AWG 24.2mm 13.7mm Tin Loose Piece | Avnet Abacus |
