190690093 Krimptite by Molex

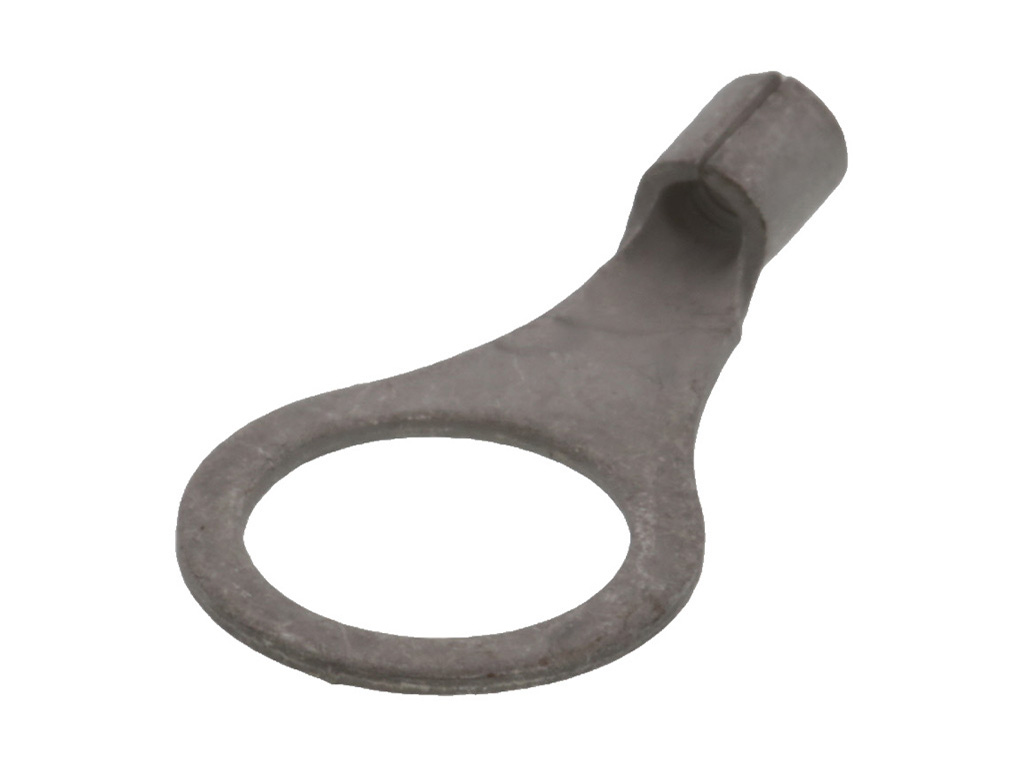

Krimptite Ring Tongue Terminal for 16-14 AWG Wire, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19069-0093,
0190690093, BB-118-38 |
Where to Buy
Prices starting from US$0.10
Specifications
| Product Name | Krimptite |
|---|
Physical |
|
|---|---|
| Barrel Type | Closed |
| Insulation | None |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.045/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Stud Size | 3/8" (M9) |
| Termination Interface Style | Crimp or Compression |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RING KRIMPTITE (BB-118-38) SPM | Heilind Americas |
| RING-TRM|16-14|3/8 |N-I|SN | TTI Americas |
| Ring Krimptite (Bb-118-38) Spm Rohs Compliant: Yes |Molex 19069-0093 | Newark Electronics |
