190390010 Avikrimp by Molex

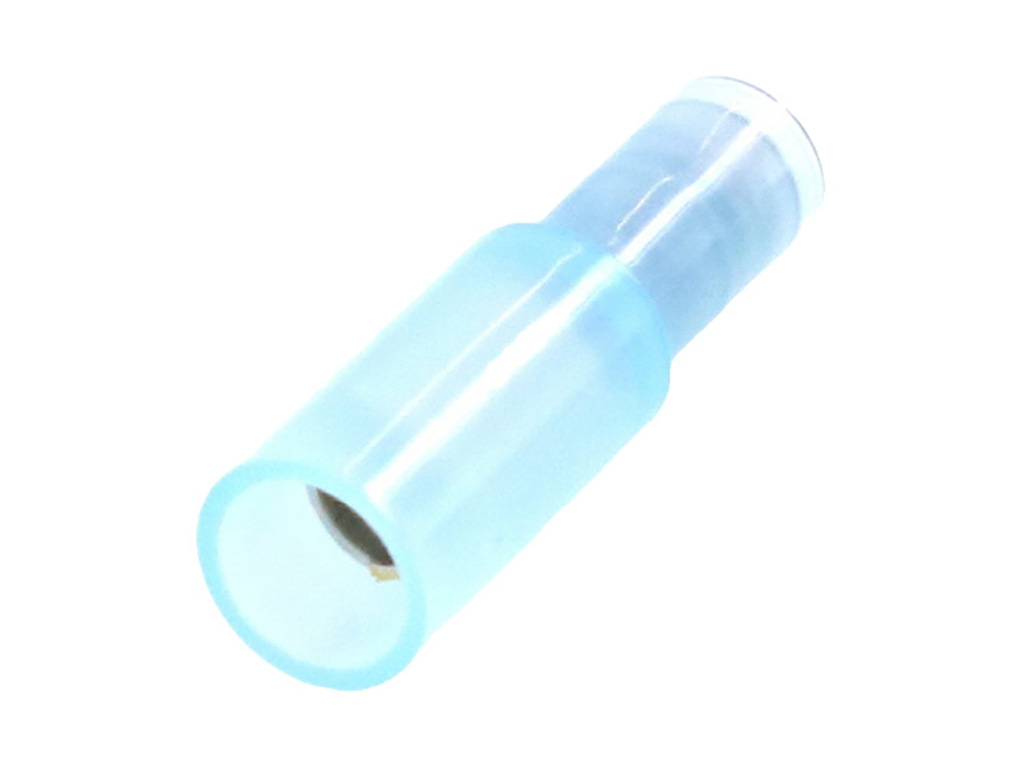

Avikrimp Snap Receptacle, for 16-14 AWG Wire, Nylon, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19039-0010,
0190390010, BRB-8180N |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.16
|
23,772
in stock
|
Buy Now |
|
TME
from US$0.31
|
3,800
in stock
|
Buy Now |
|
Conrad
from US$0.44
|
3,800
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
3,420
in stock
|
Buy Now |
|
TTI Americas
from US$0.23
|
2,160
in stock
|
Buy Now |
|
Newark Electronics
from US$0.29
|
845
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
12,000
in stock
|
Buy Now |
|
RS
from US$0.39
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.42
|
0
in stock
|
Buy Now |
|
element14
from US$0.22
|
0
in stock
|
Buy Now |
|
Sager
from US$0.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | Per Wire Specification |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.361/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.81mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.00-2.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 19039-0010 | TME |
| Molex 190390010 Rundsteckhülse 1 St. Bulk | Conrad |
| CRIMP TERMINALS - BULLET | Farnell |
| SSKT-DSC|16-14|.180 |NYL|BLU | TTI Americas |
| Snap Plug Recept. Avikrimp (Brb-8180N) Rohs Compliant: Yes |Molex 19039-0010 | Newark Electronics |
| Molex 19039-0010 Receptacle | RS |
| Quick Disconnect Terminal 14AWG F Tin Bag | Avnet America |
| TERMINAL, FEMALE BULLET, 16-14AWG | element14 |
| Terminals SNAP PLUG RECEPT. AVIKRIMP (BRB-8180N) | Sager |
| SNAP PLUG RECEPT. AVIKRIMP (B B-8180N) | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190390010?
Additional datasheets, footprints and schematics for 190390010 are listed on our Part Details page. You can also find images and similar parts to 190390010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190390010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190390010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190390010 fall under?
The 190390010 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190390010 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190390010 you can contact the distributor directly for product support, shipping queries etc.
Is the 190390010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190390010 have stock available?
Authorised distributors including Waytek, TME, Conrad, Farnell and TTI Americas have stock available or on a lead time for 190390010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190390010 often in real-time on the comparison pages.
What if I can't find stock of 190390010?
You can fill out our help required form which you can use to request a quote for 190390010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
