190390005 Avikrimp by Molex

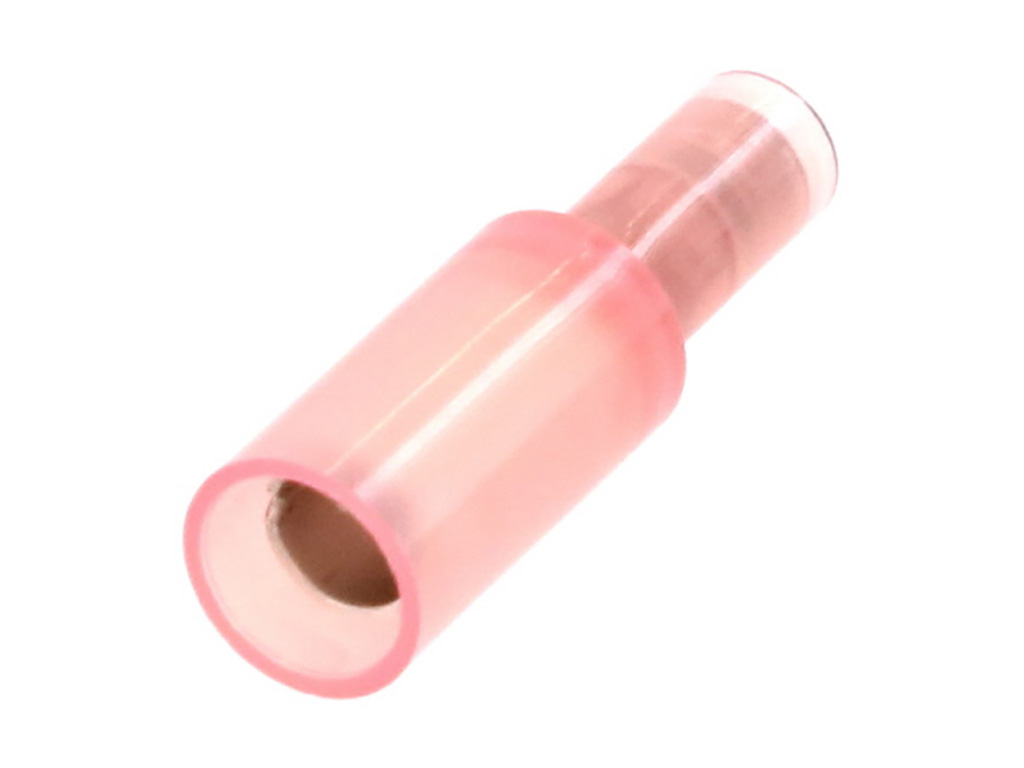

Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19039-0005,
0190390005, BRA-8180N |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.17
|
25,679
in stock
|
Buy Now |
|
TTI Americas
from US$0.23
|
4,599
in stock
|
Buy Now |
|
Newark Electronics
from US$0.30
|
3,712
in stock
|
Buy Now |
|
element14
from US$0.29
|
3,712
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
3,712
in stock
|
Buy Now |
|
Heilind Americas
from US$0.23
|
3,000
in stock
|
Buy Now |
|
RS
from US$0.41
|
290
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.42
|
267
in stock
|
Buy Now |
|
Conrad
from US$0.36
|
267
in stock
|
Buy Now |
|
|
RS Americas
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | Per Wire Specification |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.279/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.25mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SSKT-DSC|22-18|.180 |NYL|RED | TTI Americas |
| Terminal, Female Bullet, 4.57Mm, 18Awg | Newark Electronics |
| TERMINAL, FEMALE BULLET, 4.57MM, 18AWG | element14 |
| SNAP PLUG RECEPT. AVIKRIMP (B A-8180N) | Heilind Americas |
| Molex 19039-0005 | RS |
| Molex 190390005 Bullet Receptacle For 18-22 AWG Wire 4.57mm Plug | Rapid Electronics |
| Molex 190390005 Rundsteckhülse 1 St. Bulk | Conrad |
