190390001 Avikrimp by Molex

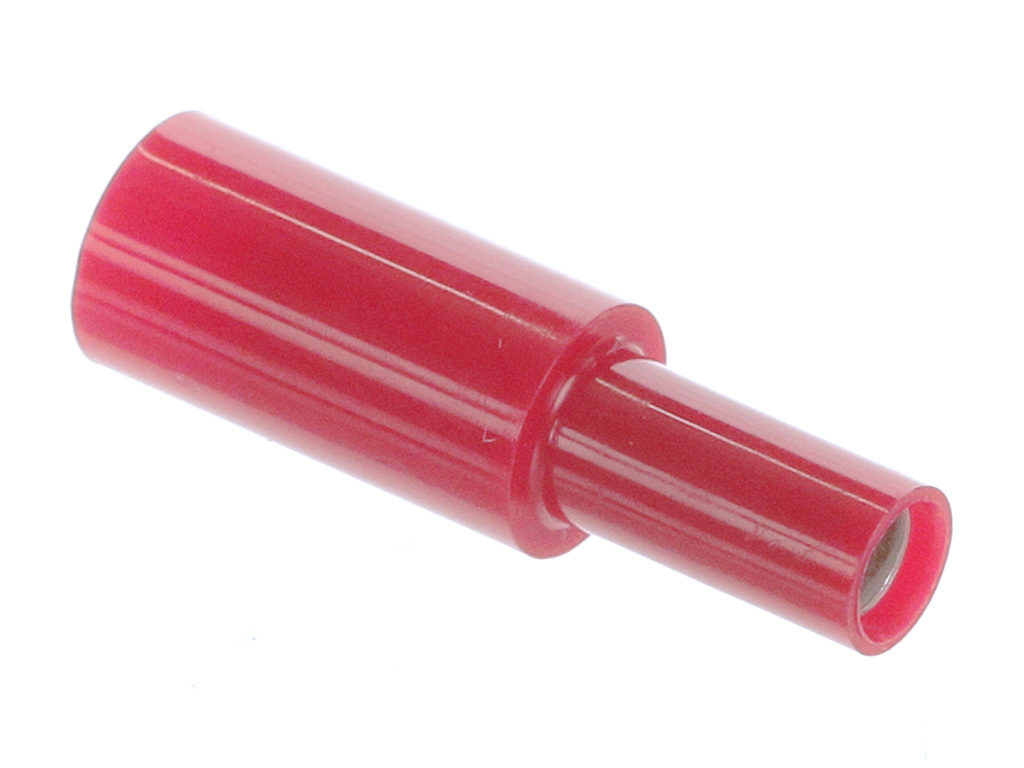

Avikrimp Snap Receptacle, for 22-18 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19039-0001,
0190390001, BRA-8156 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.13
|
49,268
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
37,191
in stock
|
Buy Now |
|
Conrad
from US$0.44
|
26,763
in stock
|
Buy Now |
|
TME
from US$0.25
|
24,863
in stock
|
Buy Now |
|
Farnell
from US$0.29
|
24,087
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
4,000
in stock
|
Buy Now |
|
element14
from US$0.35
|
1,000
in stock
|
Buy Now |
|
RS Americas
from US$0.38
|
727
in stock
|
Buy Now |
|
|
RS
from US$0.59
|
240
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
16,052
in stock
|
Buy Now |
|
Avnet America
from US$0.15
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.22
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | Per Wire Specification |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.241/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.25mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SNAP PLUG RCPT,BRA-8156 LOOSE PC | Heilind Americas |
| SSKT-DSC|22-18|.156 |VYL|RED | TTI Americas |
| Molex 190390001 Rundsteckhülse 1 St. Bulk | Conrad |
| Terminal: flat | TME |
| BULLET CRIMP TERMINALS | Farnell |
| Bullet Terminal, Female Bullet, 22-18Awg | Newark Electronics |
| CRIMP TERMINAL | element14 |
| Molex 19039-0001 | RS |
| Snap Plug Terminal 18-22AWG F 25.78mm 7.8mm Tin Box | Avnet America |
| SNAP PLUG,AWG#18-22,PVC | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190390001?
Additional datasheets, footprints and schematics for 190390001 are listed on our Part Details page. You can also find images and similar parts to 190390001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190390001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190390001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190390001 fall under?
The 190390001 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190390001 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190390001 you can contact the distributor directly for product support, shipping queries etc.
Is the 190390001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190390001 have stock available?
Authorised distributors including Heilind Americas, TTI Americas, Conrad, TME and Farnell have stock available or on a lead time for 190390001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190390001 often in real-time on the comparison pages.
What if I can't find stock of 190390001?
You can fill out our help required form which you can use to request a quote for 190390001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
