190380013 InsulKrimp by Molex

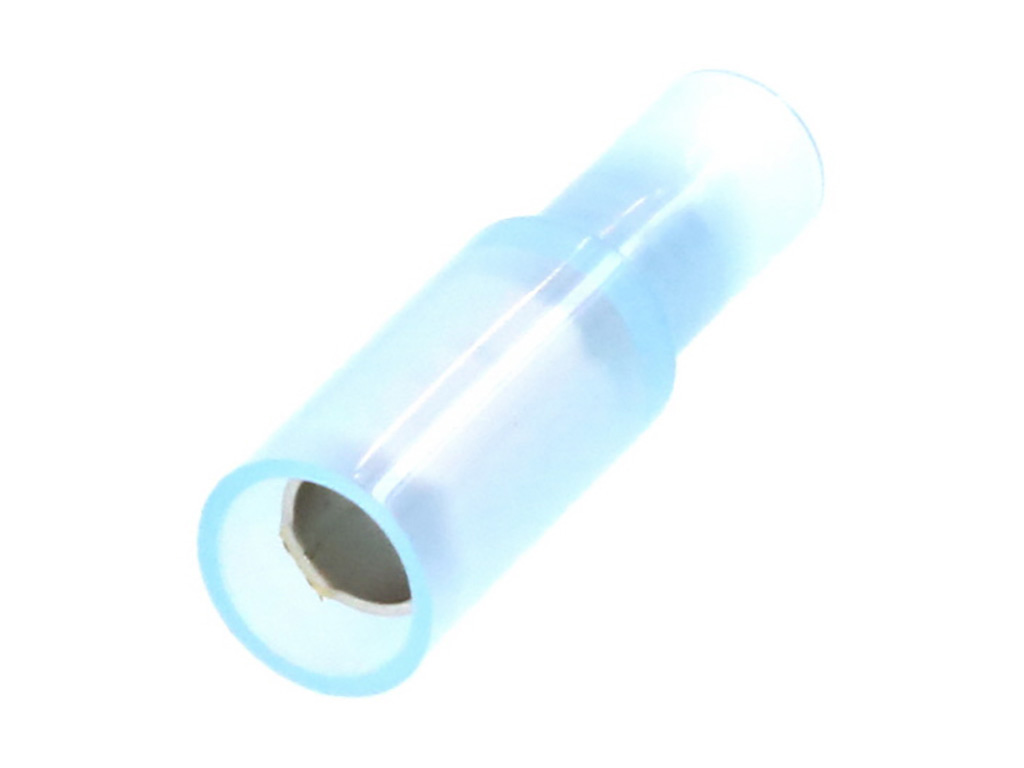

InsulKrimp Snap Receptacle, for 16-14 AWG Wire, Nylon, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19038-0013,
0190380013, BRB-2180N |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.13
|
62,211
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
52,436
in stock
|
Buy Now |
|
Heilind Europe
from US$0.16
|
6,523
in stock
|
Buy Now |
|
element14
from US$0.19
|
3,523
in stock
|
Buy Now |
|
Farnell
from US$0.22
|
3,523
in stock
|
Buy Now |
|
RS
from US$0.37
|
960
in stock
|
Buy Now |
|
Avnet Abacus
-
|
4,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
200
in stock
|
Buy Now |
|
Avnet America
from US$0.15
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.39
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.15
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.161/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.81mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.00-2.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SSKT-DSC|16-14|.180 |NYL|BLU | TTI Americas |
| SNAP PLUG RECEPT. INSULKRIMP BRB-2180N) | Heilind Europe |
| SNAP PLUG RECEPT. INSULKRIMP (BRB-2180N) 55H3189 | element14 |
| Molex 190380013 Ring Terminal | RS |
| Snap Receptacles Terminal 14-16AWG F 25.4mm 7.6mm Tin Box | Avnet Abacus |
| Molex 190380013 Rundsteckhülse 1 St. Bulk | Conrad |
| INSULKRIMP SNAP RECEPTACLE | TTI Europe |
| SNAP PLUG RECEPT. INSULKRIMP | TTI Asia |
