190380011 InsulKrimp by Molex

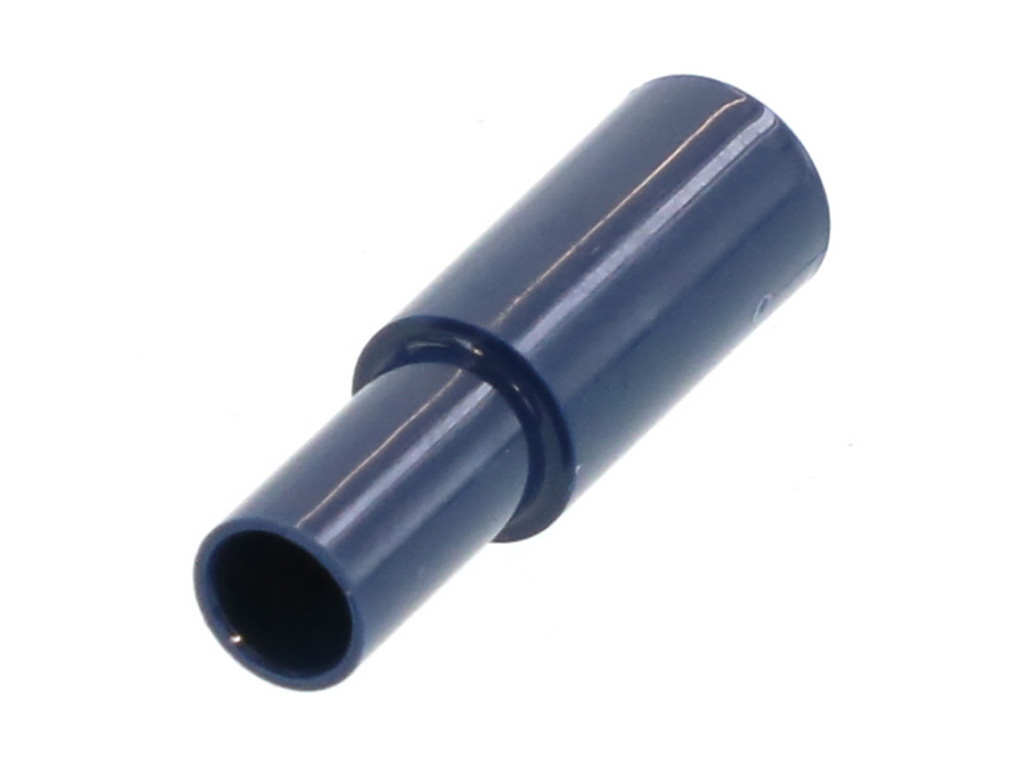

InsulKrimp Snap Receptacle, for 16-14 AWG Wire, PVC, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19038-0011,
0190380011, BRB-2180 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.11
|
36,441
in stock
|
Buy Now |
|
TTI Americas
from US$0.14
|
6,650
in stock
|
Buy Now |
|
Farnell
from US$0.20
|
2,939
in stock
|
Buy Now |
|
element14
from US$0.17
|
1,230
in stock
|
Buy Now |
|
RS Americas
from US$0.27
|
23
in stock
|
Buy Now |
|
Newark Electronics
from US$0.17
|
18
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
14,164
in stock
|
Buy Now |
|
Avnet America
from US$0.15
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.248/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.81mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.00-2.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SNAP PLUG RECEPT. INSULKRIMP BRB-2180) | Heilind Americas |
| SSKT-DSC|16-14|.180 |VYL|BLU | TTI Americas |
| TERMINAL, FEMALE BULLET, 16-14AWG | Farnell |
| TERMINAL, FEMALE BULLET, 4.57MM, 14AWG | element14 |
| Snap Plug Recept. Insulkrimp (Brb-2180) Rohs Compliant: Yes |Molex 19038-0011 | Newark Electronics |
| Molex 190380011 Flachstecker 1 St. Bulk | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190380011?
Additional datasheets, footprints and schematics for 190380011 are listed on our Part Details page. You can also find images and similar parts to 190380011 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190380011 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190380011 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190380011 fall under?
The 190380011 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190380011 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190380011 you can contact the distributor directly for product support, shipping queries etc.
Is the 190380011 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190380011 have stock available?
Authorised distributors including Heilind Americas, TTI Americas, Farnell, element14 and RS Americas have stock available or on a lead time for 190380011.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190380011 often in real-time on the comparison pages.
What if I can't find stock of 190380011?
You can fill out our help required form which you can use to request a quote for 190380011 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
