190380006 InsulKrimp by Molex

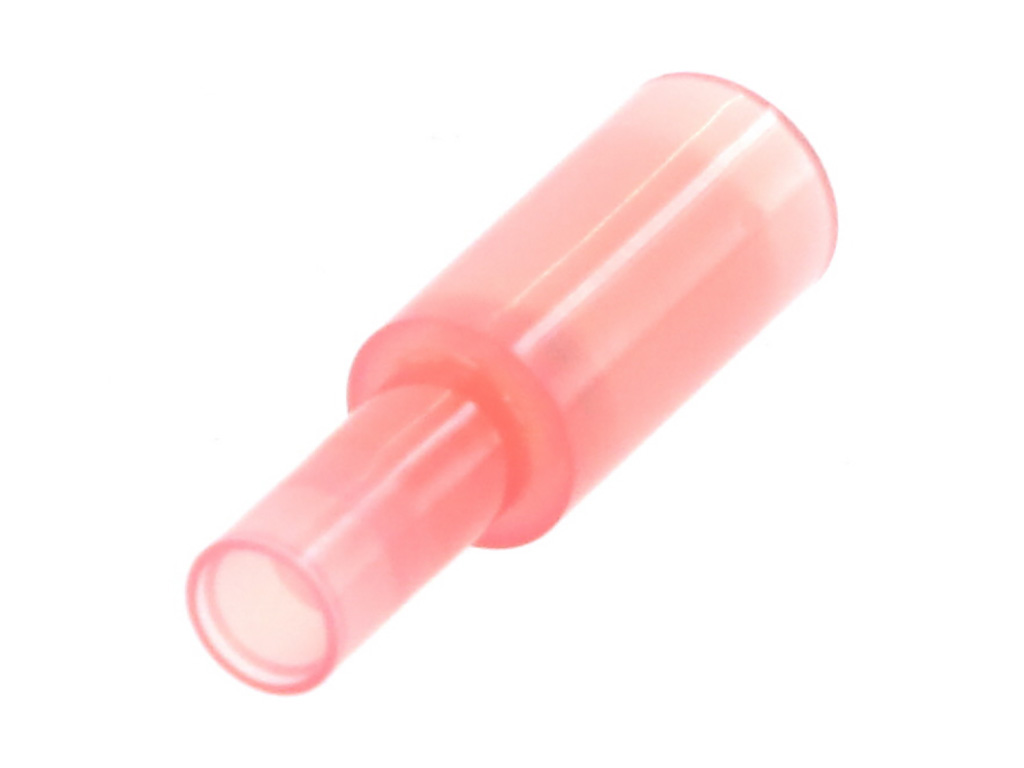

InsulKrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19038-0006,
0190380006, BRA-2180N |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.16
|
44,674
in stock
|
Buy Now |
|
TME
from US$0.18
|
7,201
in stock
|
Buy Now |
|
Farnell
from US$0.22
|
6,481
in stock
|
Buy Now |
|
TTI Americas
from US$0.16
|
4,597
in stock
|
Buy Now |
|
Avnet America
from US$0.17
|
0
in stock
|
Buy Now |
|
element14
from US$0.19
|
0
in stock
|
Buy Now |
|
Heilind Europe
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.119/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.25mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal: flat | TME |
| CRIMP TERMINALS - BULLET | Farnell |
| SSKT-DSC|22-18|.180 |NYL|RED | TTI Americas |
| TERMINAL, FEMALE BULLET, 22-18AWG | element14 |
| SNAP PLUG RECEPT. INSULKRIMP B SNAP PLUG RECEPT INS | Heilind Europe |
