190380004 InsulKrimp by Molex

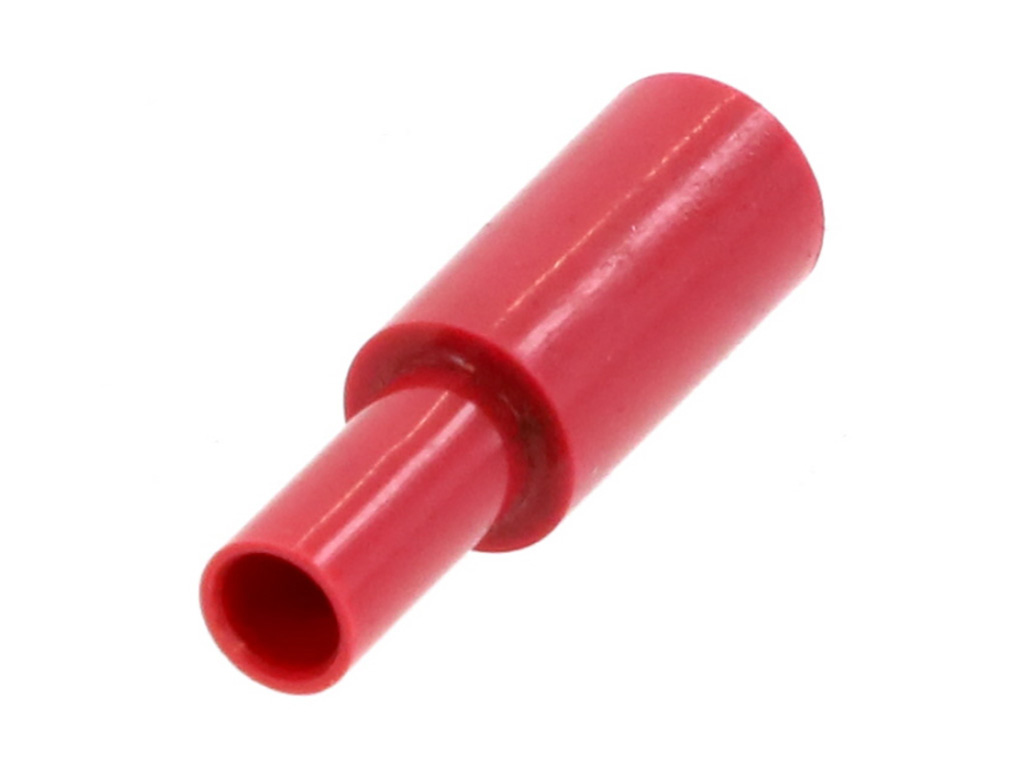

InsulKrimp Snap Receptacle, for 22-18 AWG Wire, PVC, Fits Male Plug Diameter 4.57mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19038-0004,
0190380004, BRA-2180 |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.17
|
16,575
in stock
|
Buy Now |
|
Heilind Americas
from US$0.13
|
9,165
in stock
|
Buy Now |
|
TME
from US$0.14
|
2,473
in stock
|
Buy Now |
|
Conrad
from US$0.45
|
2,473
in stock
|
Buy Now |
|
Farnell
from US$0.23
|
2,226
in stock
|
Buy Now |
|
element14
from US$0.21
|
1,764
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
6
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.11
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.221/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.25mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SSKT-DSC|22-18|.180 |VYL|RED | TTI Americas |
| SNAP PLUG RECEPT. INSULKRIMP BRA-2180) | Heilind Americas |
| 19038-0004 | TME |
| Molex 190380004 Rundsteckhülse 1 St. Bulk | Conrad |
| TERMINAL, FEMALE BULLET, 22-18AWG | Farnell |
| TERMINAL, FEMALE BULLET, 4.57MM, 18AWG | element14 |
| Snap Plug Recept. Insulkrimp (Bra-2180) Rohs Compliant: Yes |Molex 19038-0004 | Newark Electronics |
