190380001 InsulKrimp by Molex

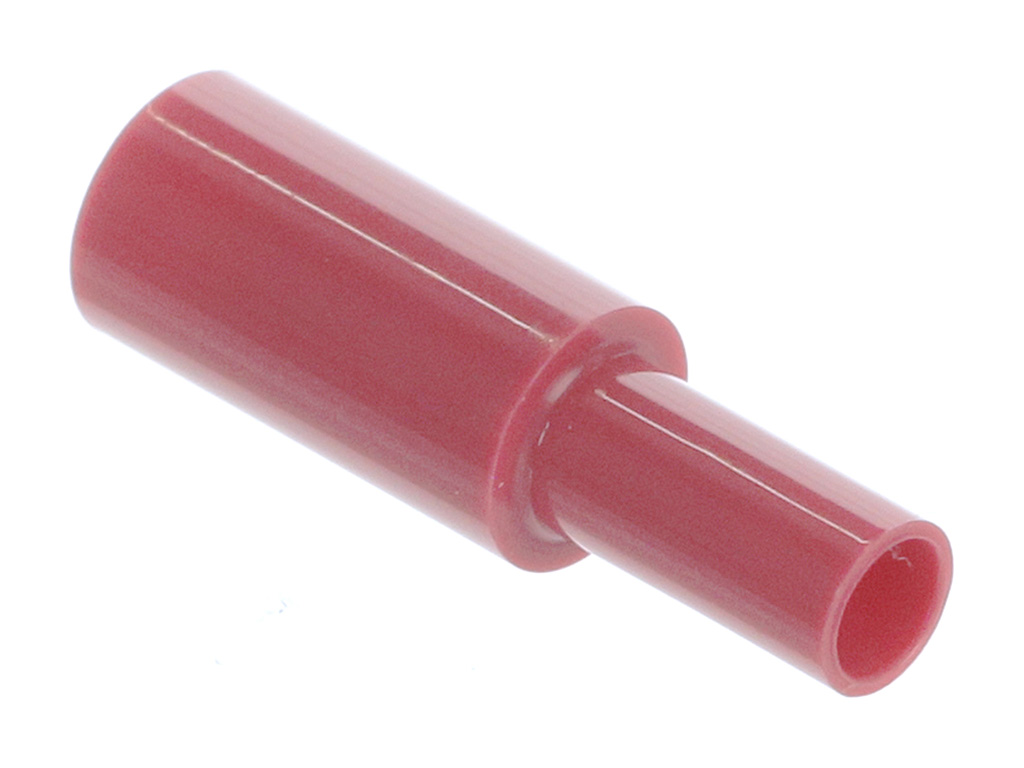

InsulKrimp Snap Receptacle, for 22-18 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19038-0001,
0190380001, BRA-2156 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.39
|
107,776
in stock
|
Buy Now |
|
Farnell
from US$0.24
|
96,999
in stock
|
Buy Now |
|
Heilind Americas
from US$0.13
|
66,037
in stock
|
Buy Now |
|
TTI Americas
from US$0.13
|
62,111
in stock
|
Buy Now |
|
Newark Electronics
from US$0.26
|
2,311
in stock
|
Buy Now |
|
element14
from US$0.27
|
2,311
in stock
|
Buy Now |
|
RS
from US$0.29
|
853
in stock
|
Buy Now |
|
|
RS Americas
from US$0.30
|
108
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
29,452
in stock
|
Buy Now |
|
Avnet Abacus
-
|
12,000
in stock
|
Buy Now |
|
Avnet America
from US$0.14
|
0
in stock
|
Buy Now |
|
TME
from US$0.33
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.22
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.041/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.25mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 190380001 Hülse 1 St. | Conrad |
| TERMINAL, FEMALE BULLET, 22-18AWG | Farnell |
| SNAP PLUG RECEPT. INSULKRIMP BRA-2156) | Heilind Americas |
| SSKT-DSC|22-18|.156 |VYL|RED | TTI Americas |
| Terminal, Female Bullet, Crimp, Red | Newark Electronics |
| TERMINAL, FEMALE BULLET, CRIMP, RED | element14 |
| Molex 190380001 Crimp Bullet Connector | RS |
| Terminal: flat | TME |
| INSULKRIMP SNAP PLUG | TTI Europe |
