190350012 Avikrimp by Molex

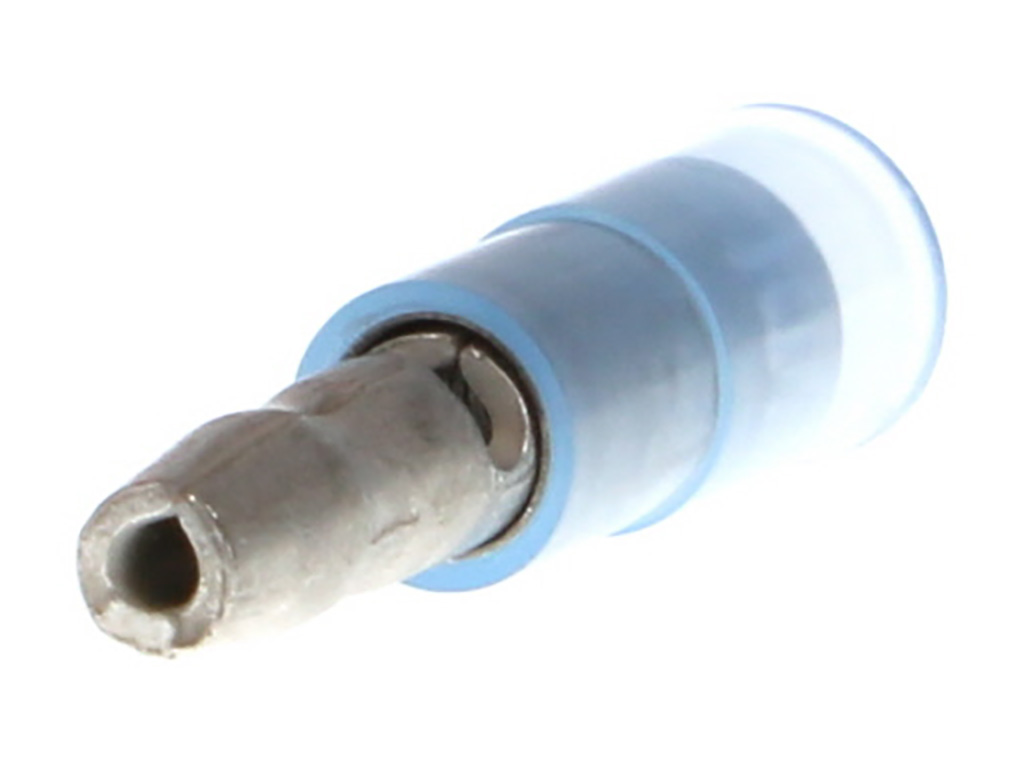

Avikrimp Snap Plug, for 16-14 AWG Wire, Mylar Tape, 22.55mm Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19035-0012,
0190350012, B-589T |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.42
|
11,000
in stock
|
Buy Now |
|
TME
from US$0.39
|
11,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.29
|
11,000
in stock
|
Buy Now |
|
Farnell
from US$0.46
|
10,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.31
|
1,500
in stock
|
Buy Now |
|
RS Americas
from US$0.34
|
650
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
16,000
in stock
|
Buy Now |
|
|
RS
from US$0.50
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.32
|
0
in stock
|
Buy Now |
|
element14
from US$0.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.29
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | N/A |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.538/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Wire Insulation Diameter | 4.32mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Snap Plug Avikrimp Taped (B-589T) |Molex 19035-0012 | Newark Electronics |
| 19035-0012 | TME |
| SPIN-DSC|16-14|.156 |NYL|BLU | TTI Americas |
| CRIMP TERMINALS - BULLET TERMINALS | Farnell |
| SNAP PLUG AVIKRIMP TAPED (B-5 9T) | Heilind Americas |
| AVIKRIMP SNAP PLUG, FOR 14 16 AWG WIRE, MYLAR TAPE, 22.55MM LENGTH | RS Americas |
| Molex 19035-0012 Plug | RS |
| TERMINAL, MALE BULLET, 3.96MM, CRIMP, BLUE | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190350012?
Additional datasheets, footprints and schematics for 190350012 are listed on our Part Details page. You can also find images and similar parts to 190350012 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190350012 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190350012 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190350012 fall under?
The 190350012 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190350012 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190350012 you can contact the distributor directly for product support, shipping queries etc.
Is the 190350012 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190350012 have stock available?
Authorised distributors including Newark Electronics, TME, TTI Americas, Farnell and Heilind Americas have stock available or on a lead time for 190350012.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190350012 often in real-time on the comparison pages.
What if I can't find stock of 190350012?
You can fill out our help required form which you can use to request a quote for 190350012 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
