190340009 InsulKrimp by Molex

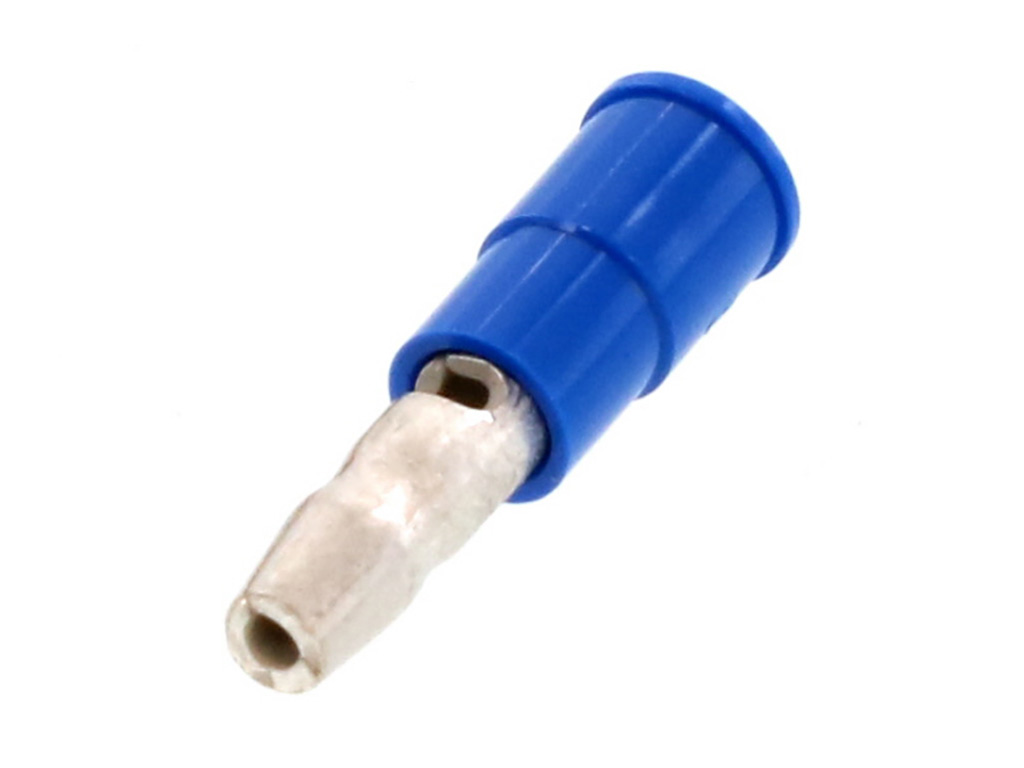

InsulKrimp Snap Plug, for 16-14 AWG Wire, 22.61mm Length, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19034-0009,
0190340009, B-289X |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Waytek
from US$0.17
|
23,301
in stock
|
Buy Now |
|
TTI Americas
from US$0.24
|
8,345
in stock
|
Buy Now |
|
RS
from US$0.42
|
1,000
in stock
|
Buy Now |
|
element14
from US$0.25
|
1,000
in stock
|
Buy Now |
|
Farnell
from US$0.26
|
1,000
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
16,209
in stock
|
Buy Now |
|
Avnet Abacus
-
|
4,000
in stock
|
Buy Now |
|
Avnet America
from US$0.25
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.19
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 1.297/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Wire Insulation Diameter | 4.40mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SPIN-DSC|16-14|.156 |VYL|BLU | TTI Americas |
| Molex 190340009 Ring Terminal | RS |
| MALE BULLET, SNAP PLUG, 3.96MM, 16-14AWG | element14 |
| Bullet Terminal, InsulKrimp 19034 Series, 16AWG to 14AWG, 2 mm�, Male Bullet, Blue | Avnet Abacus |
| Bullet Terminal, InsulKrimp 19034 Series, 16AWG to 14AWG, 2 mm?, Male Bullet, Blue | Avnet America |
| Molex 19034-0009 1 St. Bag | Conrad |
| SNAP PLUG INSULKRIMP (B-289X) | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190340009?
Additional datasheets, footprints and schematics for 190340009 are listed on our Part Details page. You can also find images and similar parts to 190340009 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190340009 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190340009 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190340009 fall under?
The 190340009 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190340009 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190340009 you can contact the distributor directly for product support, shipping queries etc.
Is the 190340009 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190340009 have stock available?
Authorised distributors including Waytek, TTI Americas, RS, element14 and Farnell have stock available or on a lead time for 190340009.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190340009 often in real-time on the comparison pages.
What if I can't find stock of 190340009?
You can fill out our help required form which you can use to request a quote for 190340009 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
