190340005 InsulKrimp by Molex

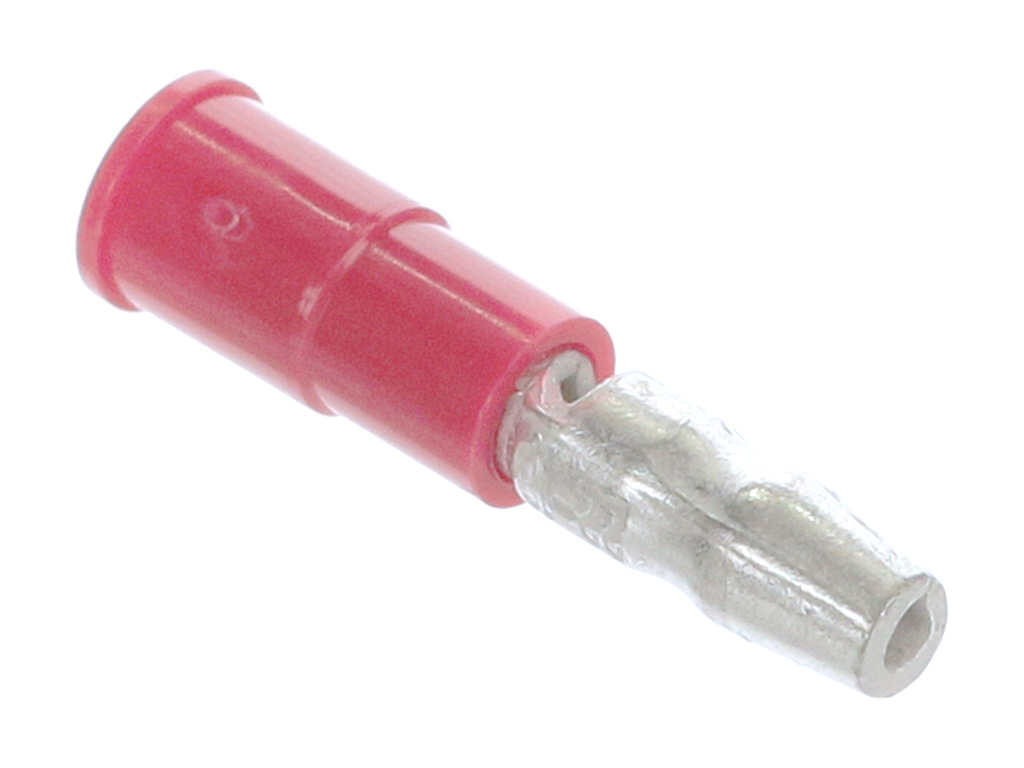

InsulKrimp Snap Plug, for 22-18 AWG Wire, 22.61mm Length, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19034-0005,
0190340005, A-269X |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.21
|
42,943
in stock
|
Buy Now |
|
Waytek
from US$0.14
|
21,140
in stock
|
Buy Now |
|
Farnell
from US$0.39
|
14,566
in stock
|
Buy Now |
|
element14
from US$0.39
|
5,967
in stock
|
Buy Now |
|
Heilind Europe
from US$0.41
|
2,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.27
|
200
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.76
|
89
in stock
|
Buy Now |
|
Conrad
from US$0.41
|
89
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
71,599
in stock
|
Buy Now |
|
Offical Electronic
-
|
23
in stock
|
Buy Now |
|
Avnet America
from US$0.18
|
0
in stock
|
Buy Now |
|
TME
from US$0.46
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.158/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Tab Thickness | N/A |
| Tab Width | N/A |
| Wire Insulation Diameter | 3.60mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SPIN-DSC|22-18|.156 |VYL|RED | TTI Americas |
| TERMINAL, MALE BULLET, 22-18AWG | Farnell |
| TERMINAL, MALE BULLET, CRIMP, RED | element14 |
| .156 MALE BULLET PLUG INSUL ( -269X) | Heilind Europe |
| INSULKRIMP SNAP PLUG | TTI Europe |
| Molex 190340005 Bullet Connector Insulkrimp 18-22 AWG 22.61 Mm Length | Rapid Electronics |
| Molex 190340005 Rundstecker 1 St. Bulk | Conrad |
| Bullet Terminal, InsulKrimp 19034, 22AWG to 18AWG, Male Bullet, PVC (Polyvinylchloride) | Avnet America |
| connector .156 MALE BULLET PLUG INSUL (A-269X) | TME |
