190170005 InsulKrimp by Molex

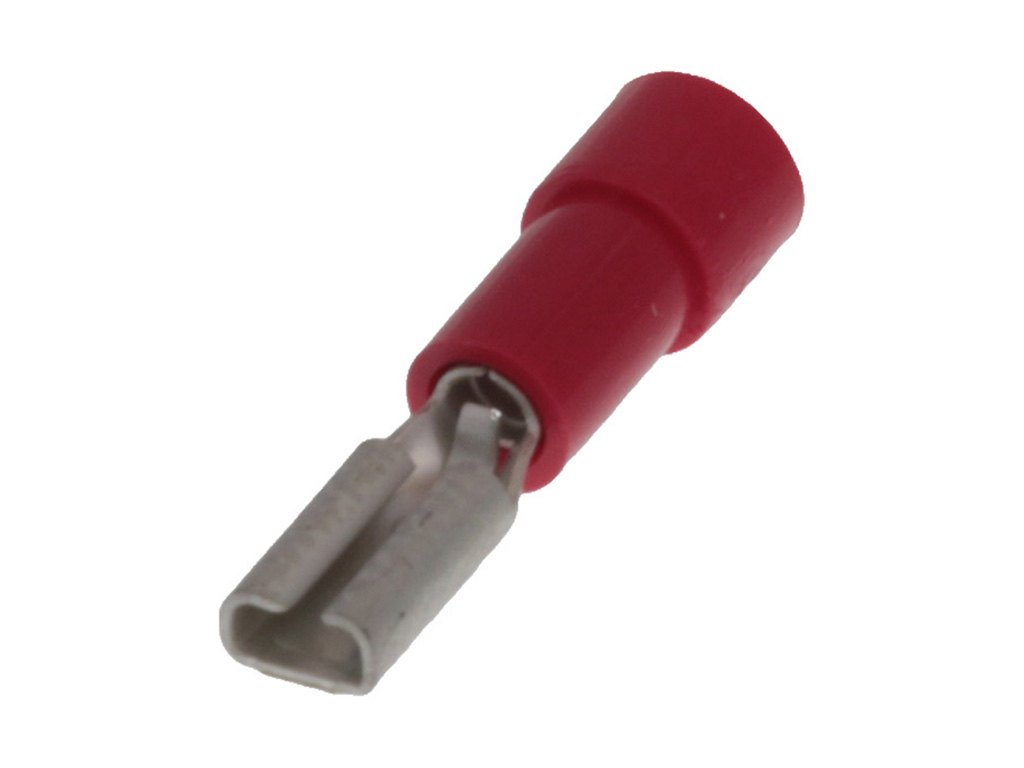

InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Box, Tab 2.79 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19017-0005,
0190170005, AA-2134 |
Where to Buy
Prices starting from US$0.08
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.19
|
8,043
in stock
|
Buy Now |
|
element14
from US$0.12
|
8,043
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
8,043
in stock
|
Buy Now |
|
RS
from US$0.14
|
2,650
in stock
|
Buy Now |
|
Heilind Americas
from US$0.15
|
4
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
11
in stock
|
Buy Now |
|
|
RS Americas
from US$0.29
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
|
EME
from US$0.11
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 0.396/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 2.79mm |
| Temperature Range Operating | -50° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.40mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Female Disconnect, 2.8Mm, 22-18Awg, Red Rohs Compliant: Yes |Molex 19017-0005 | Newark Electronics |
| FEMALE DISCONNECT, 2.8MM, 22-18AWG, RED | element14 |
| Molex 190170005 Spade Connector | RS |
| .110X.032 FEMALE QD INSULKRIM (AA-2134) | Heilind Americas |
| BREC-DSC|22-18|110X032|VYL|RED | TTI Americas |
| Quick Disconnect Terminal 18-22AWG F 22mm 4.1mm Tin Loose Piece | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190170005?
Additional datasheets, footprints and schematics for 190170005 are listed on our Part Details page. You can also find images and similar parts to 190170005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190170005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190170005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190170005 fall under?
The 190170005 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190170005 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190170005 you can contact the distributor directly for product support, shipping queries etc.
Is the 190170005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190170005 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS and Heilind Americas have stock available or on a lead time for 190170005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190170005 often in real-time on the comparison pages.
What if I can't find stock of 190170005?
You can fill out our help required form which you can use to request a quote for 190170005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
