190170004 InsulKrimp by Molex

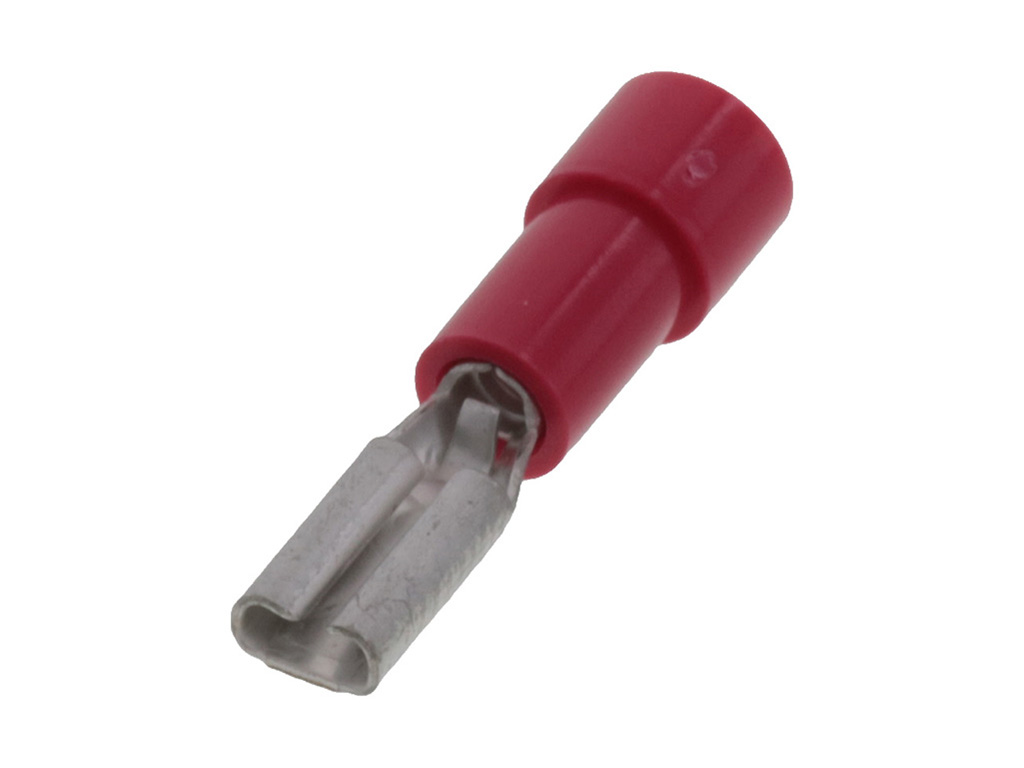

InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Mylar Tape, Tab 2.79 x 0.51mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19017-0004,
0190170004, AA-2131T |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.21
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.13
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.39
|
0
in stock
|
Buy Now |
|
element14
from US$0.28
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.16
|
0
in stock
|
Buy Now |
|
Sager
from US$0.16
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.17
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.22
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.27
|
0
in stock
|
Buy Now |
|
EME
from US$0.30
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | PVC |
| Net Weight | 0.389/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 2.79mm |
| Temperature Range Operating | -50° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.40mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Female Disconnect, 2.8Mm, 22-18Awg, Red | Newark Electronics |
| INSULKRIMP QUICK DISCONNECT, FEMALE, FOR 18 22 WIRE, MYLAR TAPE | RS Americas |
| .110X.020 FEMALE QD INSULK.TPD (AA-2131T | element14 |
| .110X.020 FEM QD INSULK TPD | TTI Americas |
| Terminals .110X.020 FEMALE QD INSULK.TPD (AA-2131T | Sager |
| .110X.020 FEMALE QD INSULK.TP (AA-2131T | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190170004?
Additional datasheets, footprints and schematics for 190170004 are listed on our Part Details page. You can also find images and similar parts to 190170004 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190170004 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190170004 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190170004 fall under?
The 190170004 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190170004 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190170004 you can contact the distributor directly for product support, shipping queries etc.
Is the 190170004 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190170004 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, element14 and TTI Americas have stock available or on a lead time for 190170004.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190170004 often in real-time on the comparison pages.
What if I can't find stock of 190170004?
You can fill out our help required form which you can use to request a quote for 190170004 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
