190130030 InsulKrimp by Molex

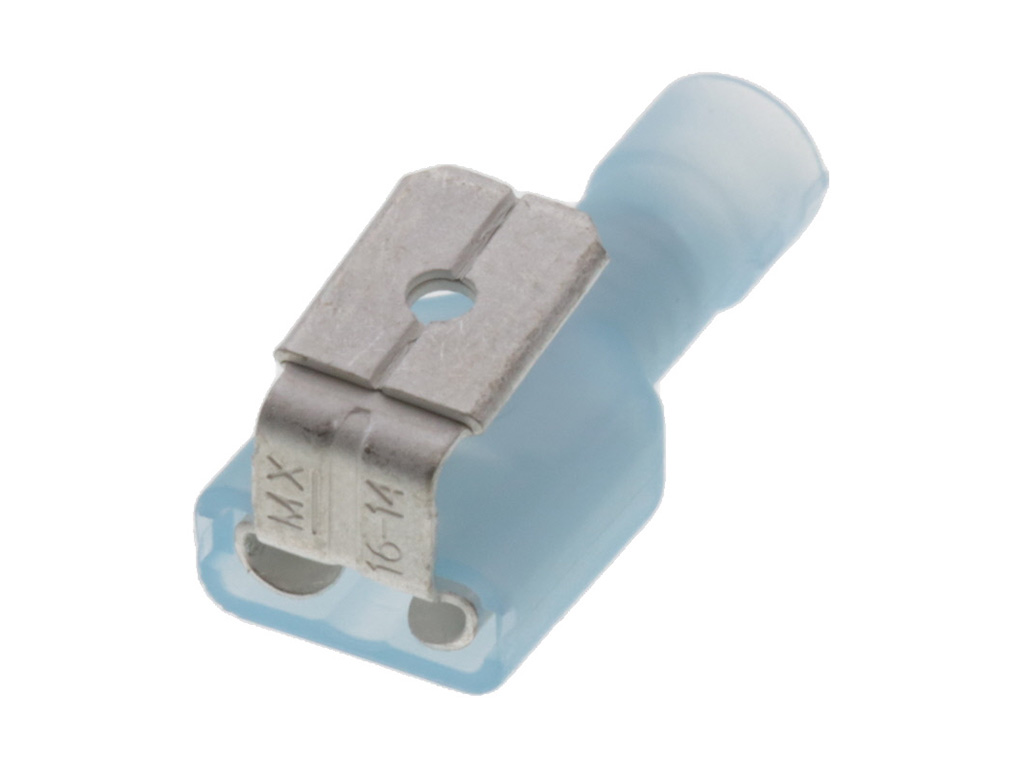

InsulKrimp Fully Insulated Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 16-14 AWG, Expanded Blue Insulator, Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19013-0030,
0190130030, BB-2318T |
Where to Buy
Prices starting from US$0.40
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V AC |
Physical |
|
|---|---|
| Barrel Type | Closed - Brazed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.256/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 4.04mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FEMALE PIGGYBACK, 6.35MM, 16-14AWG, BLU | Farnell |
| Molex 19013-0030 1 St. Tape on Full reel | Conrad |
| BPIG-DSC|16-14|250X032|NYL|NAT | TTI Americas |
| BB-2318T 16-14 F.I. PIGGYBACK TAPED P | Heilind Europe |
| Quick Disconnect Terminal 16AWG F Individual | Avnet Abacus |
