190130026 InsulKrimp by Molex

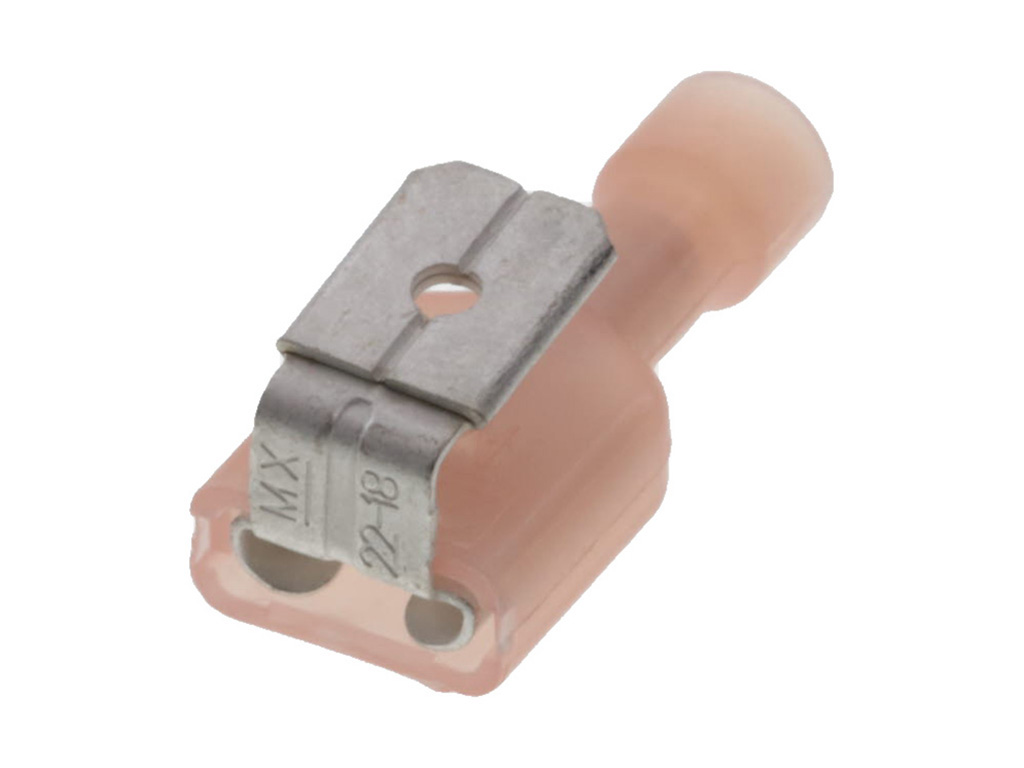

InsulKrimp Fully Insulated Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 22-18 AWG, Expanded Red Insulator, Mylar Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19013-0026,
0190130026, AA-2317T |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.29
|
18,750
in stock
|
Buy Now |
|
Farnell
from US$0.50
|
4,500
in stock
|
Buy Now |
|
TME
from US$0.37
|
4,000
in stock
|
Buy Now |
|
Conrad
from US$296.38
|
4,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.29
|
3,500
in stock
|
Buy Now |
|
RS
from US$0.56
|
1
in stock
|
Buy Now |
|
Newark Electronics
from US$0.53
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.62
|
0
in stock
|
Buy Now |
|
element14
from US$0.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.34
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V AC |
Physical |
|
|---|---|
| Barrel Type | Closed - Brazed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.231/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 3.50mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| AA-2317T 22-18 F.I. PIGGYBACK TAPED P | Heilind Americas |
| FEMALE PIGGYBACK, 6.35MM, 22-18AWG, RED | Farnell |
| Terminal: flat | TME |
| Molex 190130026 Flachsteckhülse 500 St. Tape | Conrad |
| BPIG-DSC|22-18|250X032|NYL|RED | TTI Americas |
| Molex 19013-0026 Spade Connector | RS |
| Female Piggyback, 6.35Mm, 18Awg, Red | Newark Electronics |
| AA-2317T 22-18 F.I. PIGGYBACK TAPED P | RS Americas |
| TERMINAL, PIGGBYBACK DISCONNECT, 6.35MM, CRIMP | element14 |
