190110039 InsulKrimp by Molex

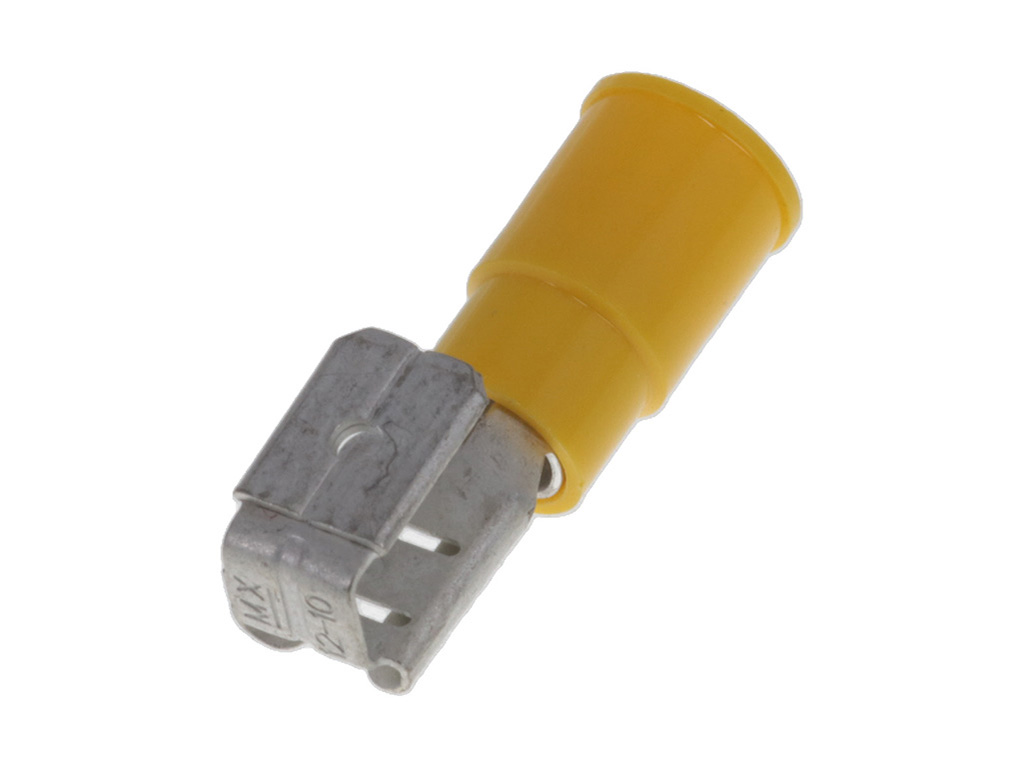

InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 12-10 AWG, Yellow Insulator, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19011-0039,
0190110039, C-2303 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.28
|
27,090
in stock
|
Buy Now |
|
Heilind Americas
from US$0.23
|
517
in stock
|
Buy Now |
|
Newark Electronics
from US$0.37
|
270
in stock
|
Buy Now |
|
element14
from US$0.32
|
270
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
270
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
5,122
in stock
|
Buy Now |
|
Conrad
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V AC |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.542/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 5.71mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| BPIG-DSC|12-10|250X032|VYL|YEL | TTI Americas |
| 250X032 12-10 PIGGYBACK INSUL C-2303 SPM | Heilind Americas |
| 250X032 12-10 Piggyback Insul C-2303 Spm Rohs Compliant: Yes |Molex 19011-0039 | Newark Electronics |
| FEMALE PIGGYBACK DISCONNECT, 12AWG-10AWG | element14 |
| Molex 190110039 Flachsteckhülse 1 St. | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190110039?
Additional datasheets, footprints and schematics for 190110039 are listed on our Part Details page. You can also find images and similar parts to 190110039 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190110039 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190110039 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190110039 fall under?
The 190110039 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190110039 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190110039 you can contact the distributor directly for product support, shipping queries etc.
Is the 190110039 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190110039 have stock available?
Authorised distributors including TTI Americas, Heilind Americas, Newark Electronics, element14 and Farnell have stock available or on a lead time for 190110039.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190110039 often in real-time on the comparison pages.
What if I can't find stock of 190110039?
You can fill out our help required form which you can use to request a quote for 190110039 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
