190110037 InsulKrimp by Molex

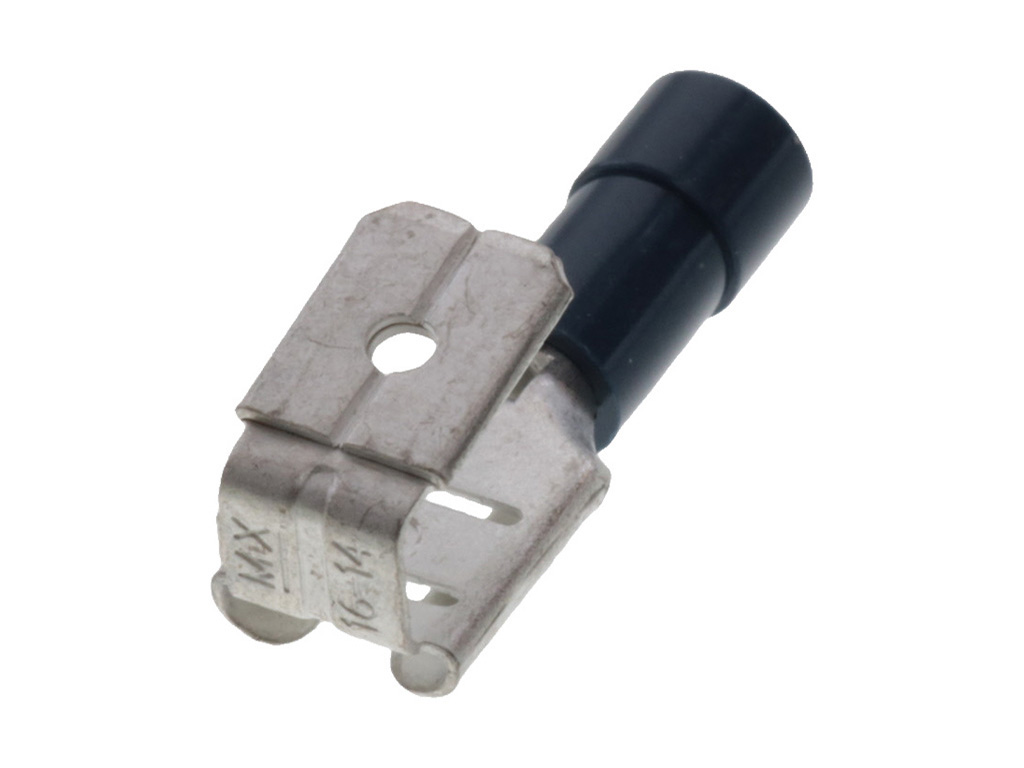

InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 16-14 AWG, Blue Insulator, Loose, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19011-0037,
0190110037, BB-2302 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.22
|
87,585
in stock
|
Buy Now |
|
Heilind Americas
from US$0.14
|
22,021
in stock
|
Buy Now |
|
Conrad
from US$0.46
|
3,697
in stock
|
Buy Now |
|
Farnell
from US$0.27
|
3,328
in stock
|
Buy Now |
|
Newark Electronics
from US$0.27
|
294
in stock
|
Buy Now |
|
element14
from US$0.24
|
294
in stock
|
Buy Now |
|
RS
from US$0.29
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.14
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V AC |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Partial |
| Insulation | PVC |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.078/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | 105°C |
| Wire Insulation Diameter | 3.56mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| BPIG-DSC|16-14|250X032|VYL|BLU | TTI Americas |
| 250X032 PIGGYBACK INSUL BB-2 02 SPM | Heilind Americas |
| Molex 190110037 Flachsteckhülse Steckbreite: 6.35 mm Steckdicke: 0.81 mm 1 St. Bulk | Conrad |
| FEMALE PIGGYBACK DISCONNECT, 16-14AWG | Farnell |
| 250X032 Piggyback Insul Bb-2302 Spm Rohs Compliant: Yes |Molex 19011-0037 | Newark Electronics |
| FEMALE PIGGYBACK DISCONNECT, 16AWG-14AWG | element14 |
| Molex 19011-0037 | RS |
