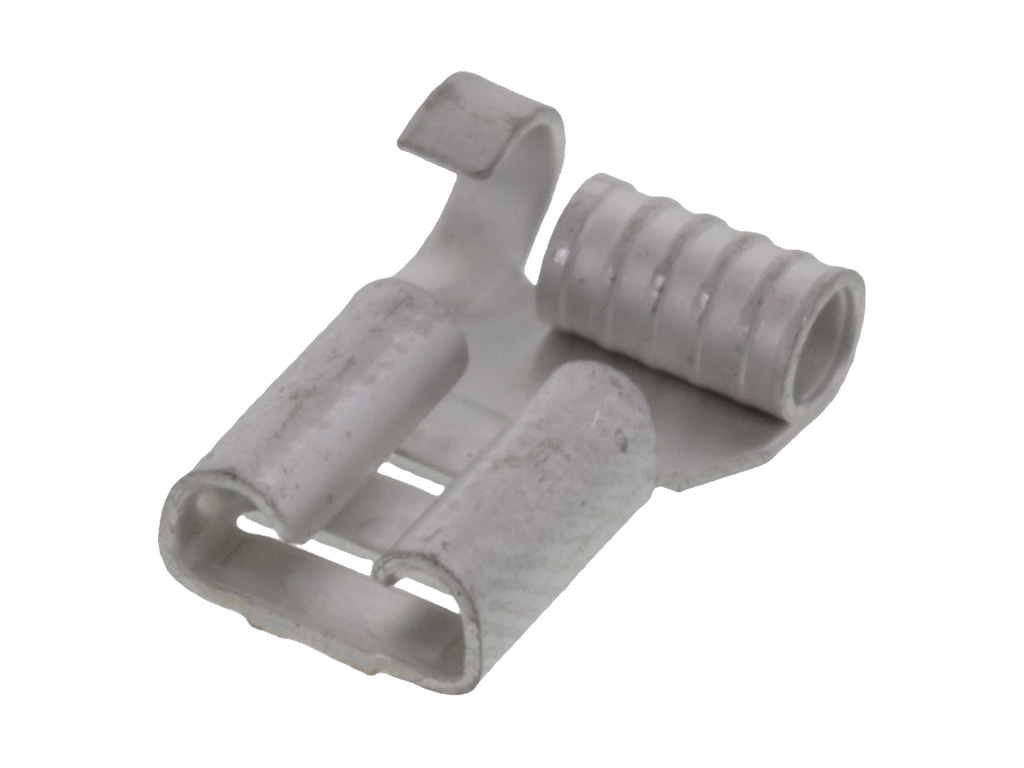

190090011 VibraKrimp by Molex
VibraKrimp Quick Disconnect Flag, Female, for 16-14 AWG Wire, Mylar Tape Carrier
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19009-0011,
0190090011, BB-4169T |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.20
|
85,125
in stock
|
Buy Now |
|
TTI Americas
from US$0.20
|
45,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.28
|
0
in stock
|
Buy Now |
|
element14
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.25
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | VibraKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | Per Wire Specification |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | No |
| Insulation | None |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.764/g |
| Orientation | Flag |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | Per Wire Specification |
| Wire Insulation Diameter | 3.68mm |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| BB-4169T .250X.032 FLAG QD VI RA TAPED | Heilind Americas |
| NFLG-DSC|16-14|250X032|N-I|SN | TTI Americas |
| Female Quick Disconn, 6.35Mm, 16-14Awg | Newark Electronics |
| TERMINAL, FLAG DISCONNECT, CRIMP | element14 |
| BB-4169T .250X.032 FLAG QD VIBRA TAPED | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190090011?
Additional datasheets, footprints and schematics for 190090011 are listed on our Part Details page. You can also find images and similar parts to 190090011 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190090011 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190090011 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190090011 fall under?
The 190090011 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190090011 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190090011 you can contact the distributor directly for product support, shipping queries etc.
Is the 190090011 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190090011 have stock available?
Authorised distributors including Heilind Americas, TTI Americas, Newark Electronics, element14 and Heilind Europe have stock available or on a lead time for 190090011.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190090011 often in real-time on the comparison pages.
What if I can't find stock of 190090011?
You can fill out our help required form which you can use to request a quote for 190090011 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
