190060019 Avikrimp by Molex

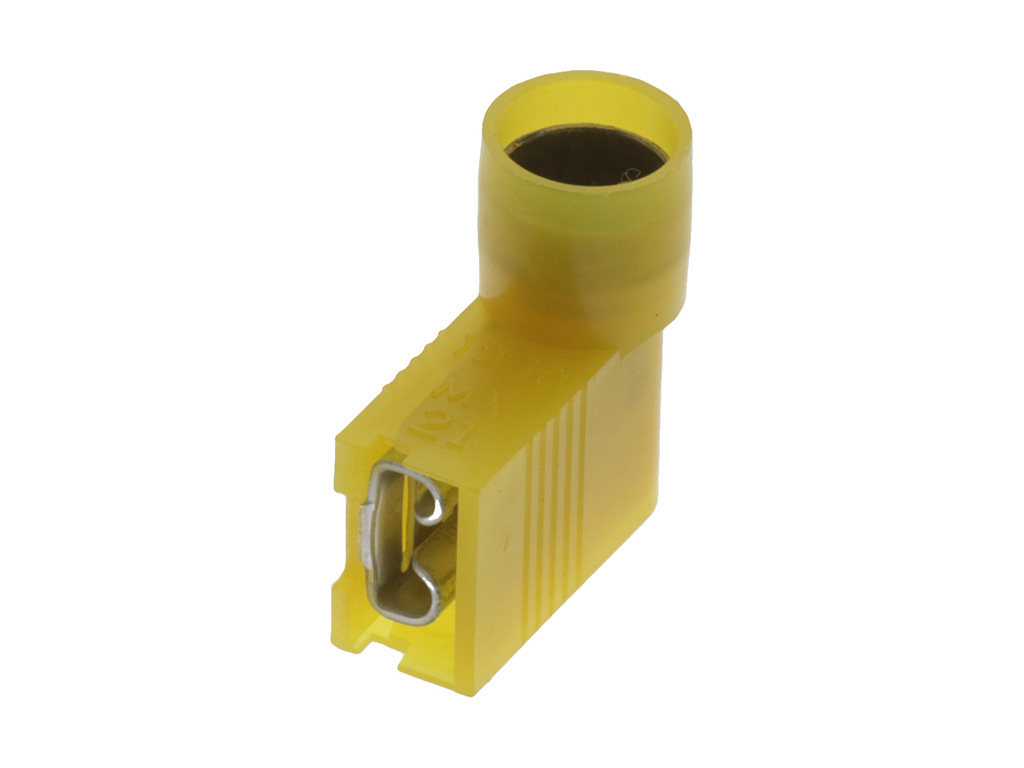

Avikrimp Quick Disconnect, Female Flag, for 12-10 AWG Wire, Tab 6.35 x 0.81mm, Yellow, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19006-0019,
0190060019, C-5211 |
Where to Buy
Prices starting from US$0.30
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.32
|
25,671
in stock
|
Buy Now |
|
TTI Americas
from US$0.31
|
8,385
in stock
|
Buy Now |
|
Sager
from US$0.30
|
3,000
in stock
|
Buy Now |
|
element14
from US$0.46
|
2,733
in stock
|
Buy Now |
|
Farnell
from US$0.54
|
2,733
in stock
|
Buy Now |
|
Conrad
from US$0.41
|
1,457
in stock
|
Buy Now |
|
RS
from US$1.07
|
1,090
in stock
|
Buy Now |
|
Newark Electronics
from US$0.49
|
1,066
in stock
|
Buy Now |
|
TME
from US$0.43
|
845
in stock
|
Buy Now |
|
|
RS Americas
from US$0.62
|
203
in stock
|
Buy Now |
|
Avnet Abacus
-
|
6,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
100
in stock
|
Buy Now |
|
Avnet America
from US$0.36
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.34
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | Yes |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.862/g |
| Orientation | Flag |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 6.30mm max. |
| Wire Size Awg | 10 (105 strands), 12 (65 strands) |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .250 X.032 AVIK. FLAG (C-5211) | Heilind Americas |
| FFLG-DSC|12-10|250X032|NYL|YEL | TTI Americas |
| Terminals FFLG-DSC 12-10 250X032 NYL YEL | Sager |
| FEMALE DISCONNECT, 6.35MM, 12-10AWG | element14 |
| Molex 19006-0019 Flachsteckhülse 1 St. Bag | Conrad |
| Molex 190060019 Spade Connector | RS |
| Female Disconnect, 6.35Mm, 12-10Awg, Yel | Newark Electronics |
| Terminal: flat | TME |
| AVIKRIMP QUICK DISCONNECT | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190060019?
Additional datasheets, footprints and schematics for 190060019 are listed on our Part Details page. You can also find images and similar parts to 190060019 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190060019 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190060019 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190060019 fall under?
The 190060019 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190060019 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190060019 you can contact the distributor directly for product support, shipping queries etc.
Is the 190060019 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190060019 have stock available?
Authorised distributors including Heilind Americas, TTI Americas, Sager, element14 and Farnell have stock available or on a lead time for 190060019.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190060019 often in real-time on the comparison pages.
What if I can't find stock of 190060019?
You can fill out our help required form which you can use to request a quote for 190060019 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
