190060003 Avikrimp by Molex

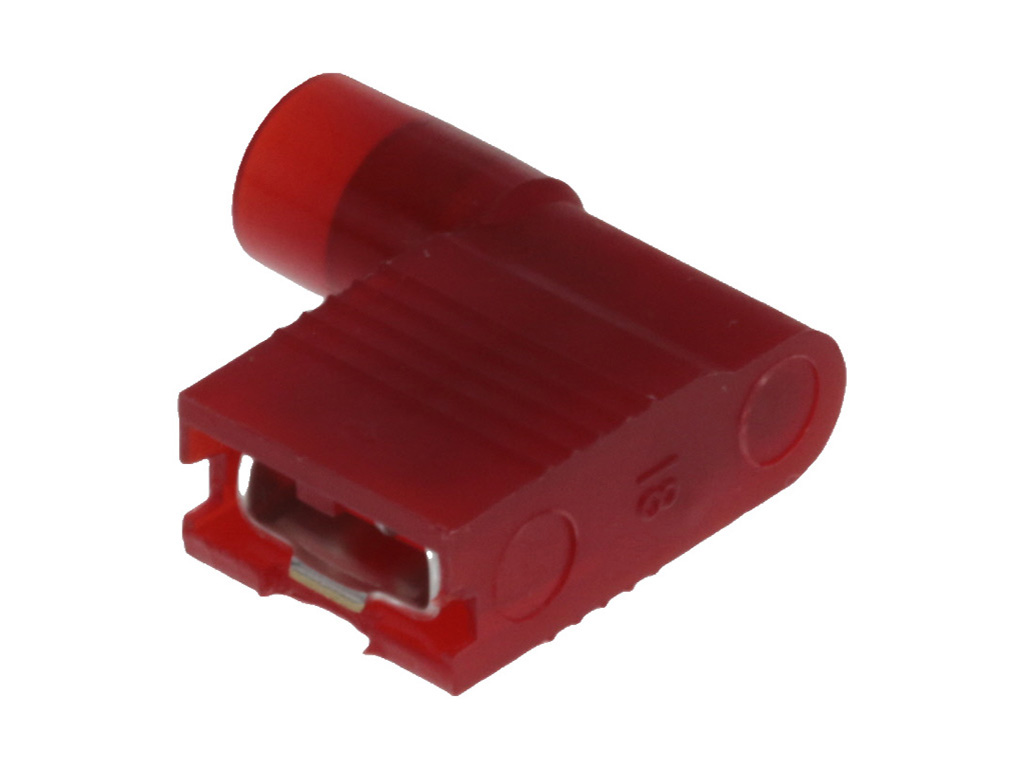

Avikrimp Quick Disconnect, Female Flag, for 22-18 AWG (0.80-0.35mm²) Wire, Tab 6.35 x 0.81mm, Red, Mylar Tape Mounted
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19006-0003,
0190060003, AA-5220T |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.44
|
6,750
in stock
|
Buy Now |
|
Heilind Americas
from US$0.36
|
3,750
in stock
|
Buy Now |
|
RS Americas
from US$0.82
|
350
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
25,000
in stock
|
Buy Now |
|
|
RS
from US$1.04
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.63
|
0
in stock
|
Buy Now |
|
TME
from US$0.67
|
0
in stock
|
Buy Now |
|
element14
from US$0.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.68
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Avikrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Red |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | Yes |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.369/g |
| Orientation | Flag |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 3.81mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FFLG-DSC|22-18|250X032|NYL|RED | TTI Americas |
| .250X.032 FIQD AVIK.FLAG TAPE (AA-5220T | Heilind Americas |
| .250X.032 FIQD AVIK.FLAG TAPED (AA-5220T) | RS Americas |
| Molex 19006-0003 | RS |
| Female Disconnect, 6.35Mm, 22-18Awg, Red | Newark Electronics |
| Terminal: flat | TME |
| TERMINAL, FEMALE DISCONNECT, 0.25IN, RED | element14 |
| Quick Disconnect Terminal 18-22AWG F 15.75mm 17.53mm Electro-Tin Adhesive T/R | Avnet Abacus |
