190050015 InsulKrimp by Molex

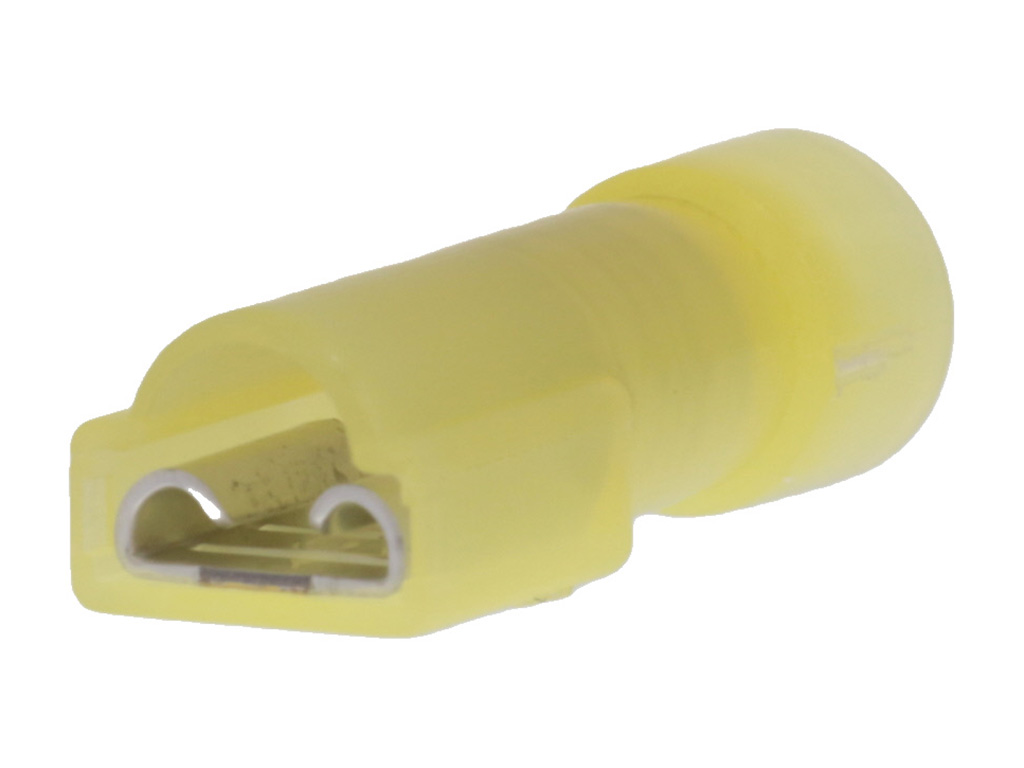

InsulKrimp Fully Insulated Coupler, Female, for 12-10 AWG Wire, Mylar Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19005-0015,
0190050015, C-2265T |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.20
|
73,500
in stock
|
Buy Now |
|
TTI Americas
from US$0.25
|
18,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.29
|
5,500
in stock
|
Buy Now |
|
TME
from US$0.35
|
5,500
in stock
|
Buy Now |
|
Farnell
from US$0.36
|
5,000
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
22,000
in stock
|
Buy Now |
|
Avnet America
from US$0.26
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.61
|
0
in stock
|
Buy Now |
|
Sager
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.28
|
0
in stock
|
Buy Now |
|
EME
from US$0.39
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Yellow |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.450/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Wire Insulation Diameter | 6.99mm max. |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .250X.032 FEM.FIQD COUPLER TP (C-2265T) | Heilind Americas |
| FREC-DSC|12-10|250X032|NYL|YEL | TTI Americas |
| Female Disconnect, 6.35Mm, 12-10Awg, Yel | Newark Electronics |
| Terminal: flat | TME |
| TERMINALS QUICK DISCONNECT FEMALE 1 | Farnell |
| Quick Disconnect Terminal 10-12AWG F 26.41mm 9.65mm Tin T/R | Avnet America |
| INSULKRIMP(T) FULLY INSULATED FEMALE QUICK DISCONNECT, FOR 10-12 AWG WIRE, MYLAR | RS Americas |
| Terminals FREC-DSC 12-10 250X032 NYL YEL | Sager |
