190030097 InsulKrimp by Molex

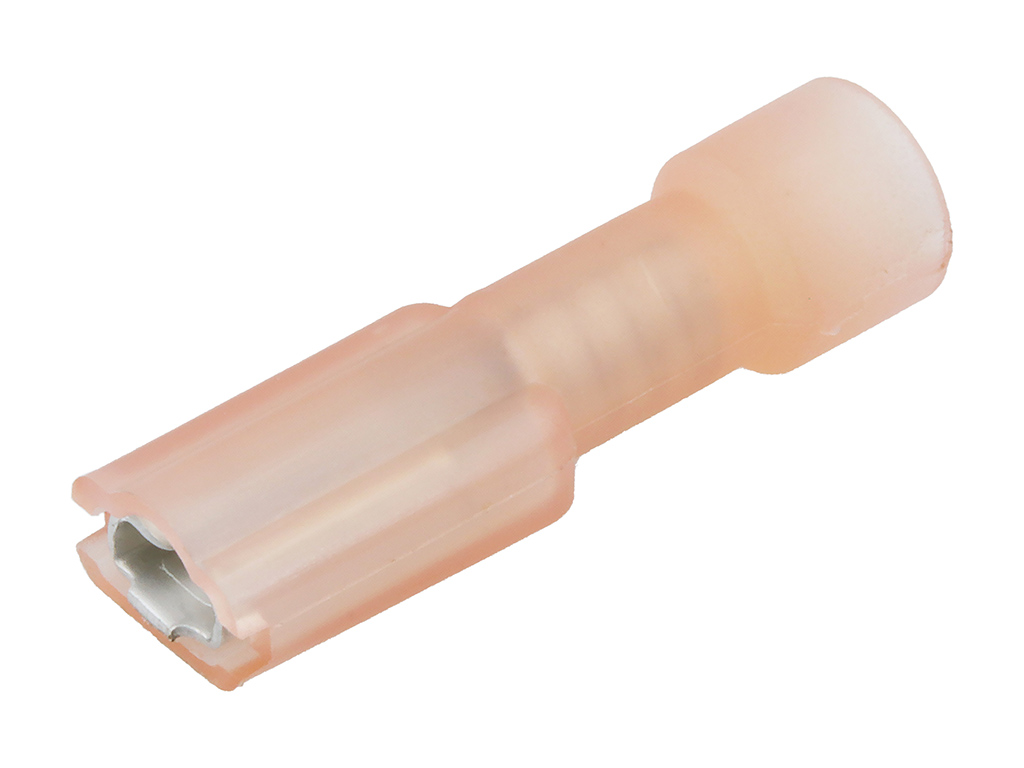

InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Continuous Molded Strip, Tab 2.79 x 0.51mm, Salmon
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0097,
0190030097, AA-2204C |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.17
|
11,250
in stock
|
Buy Now |
|
TTI Americas
from US$0.22
|
7,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.26
|
5,000
in stock
|
Buy Now |
|
TME
from US$0.31
|
2,500
in stock
|
Buy Now |
|
Conrad
from US$0.28
|
2,500
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
2,500
in stock
|
Buy Now |
|
RS
from US$0.49
|
0
in stock
|
Buy Now |
|
element14
from US$0.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.22
|
0
in stock
|
Buy Now |
|
EME
from US$0.30
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Salmon |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.462/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 2.79mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.43mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .110X .020 FEMALE RED FIQD CO T AA-2204C | Heilind Americas |
| FREC-DSC|22-18|110X020|NYL|RED | TTI Americas |
| Female Disconnect, 2.8Mm, 22-18Awg, Org | Newark Electronics |
| Terminal: flat | TME |
| Molex 19003-0097 1 St. Tape on Full reel | Conrad |
| CONNECTORS | Farnell |
| Molex 19003-0097 Crimp Terminal | RS |
| .110X .020 FEMALE RED FIQD CONT AA-2204C | element14 |
