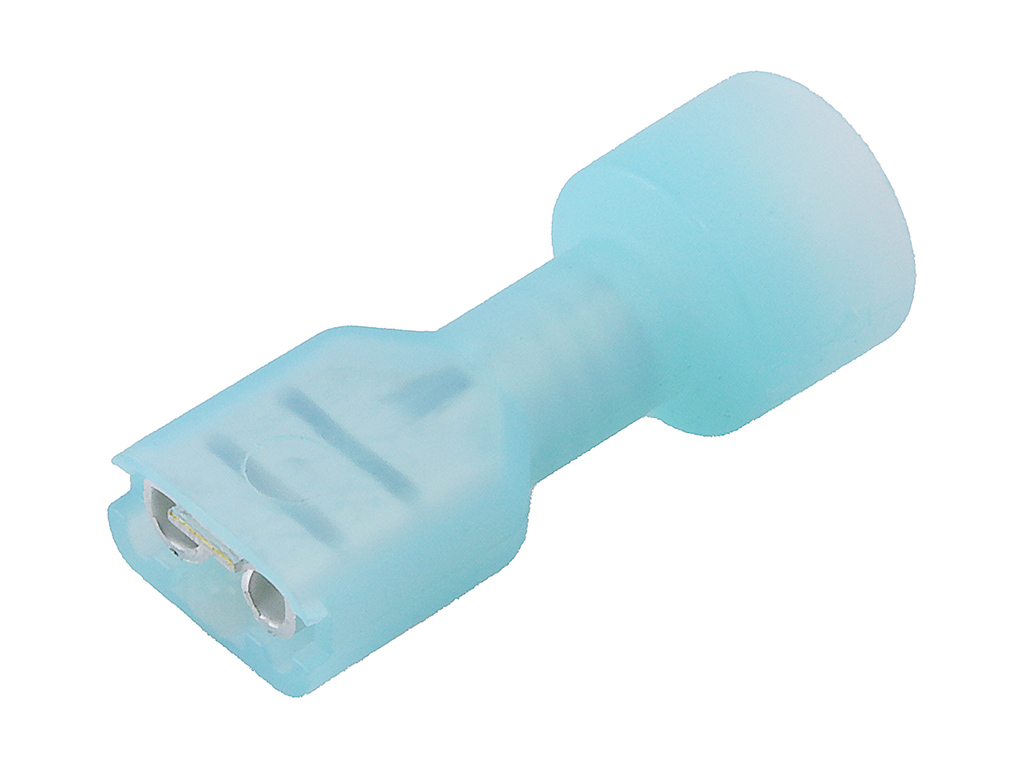

190030059 InsulKrimp by Molex
InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Box, Tab 4.75 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0059,
0190030059, BB-2208X |
Where to Buy
Prices starting from US$0.0480
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.15
|
3,121
in stock
|
Buy Now |
|
element14
from US$0.21
|
2,061
in stock
|
Buy Now |
|
Farnell
from US$0.23
|
2,061
in stock
|
Buy Now |
|
TME
from US$0.20
|
1,194
in stock
|
Buy Now |
|
Conrad
from US$0.39
|
1,194
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0480
|
12
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
446
in stock
|
Buy Now |
|
Avnet America
from US$0.17
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.15
|
0
in stock
|
Buy Now |
|
EME
from US$0.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.860/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 6.60mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .187 X .032 FEMALE FIQD EXP. BB-2208X) | Heilind Americas |
| FEMALE QUICK DISCONNECT, 16AWG-14AWG | element14 |
| Terminal: flat | TME |
| Molex 190030059 Flachsteckhülse Steckbreite: 4.75 mm Steckdicke: 0.81 mm 1 St. Bulk | Conrad |
| .187 X .032 Female Fiqd Exp. (Bb-2208X) Rohs Compliant: Yes |Molex 19003-0059 | Newark Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 190030059?
Additional datasheets, footprints and schematics for 190030059 are listed on our Part Details page. You can also find images and similar parts to 190030059 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 190030059 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 190030059 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 190030059 fall under?
The 190030059 is listed under Quick Disconnects.
Can I view similar or alternative parts?
You can view similar parts to 190030059 when available in the Quick Disconnects range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 190030059 you can contact the distributor directly for product support, shipping queries etc.
Is the 190030059 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 190030059 have stock available?
Authorised distributors including Heilind Americas, element14, Farnell, TME and Conrad have stock available or on a lead time for 190030059.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 190030059 often in real-time on the comparison pages.
What if I can't find stock of 190030059?
You can fill out our help required form which you can use to request a quote for 190030059 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
