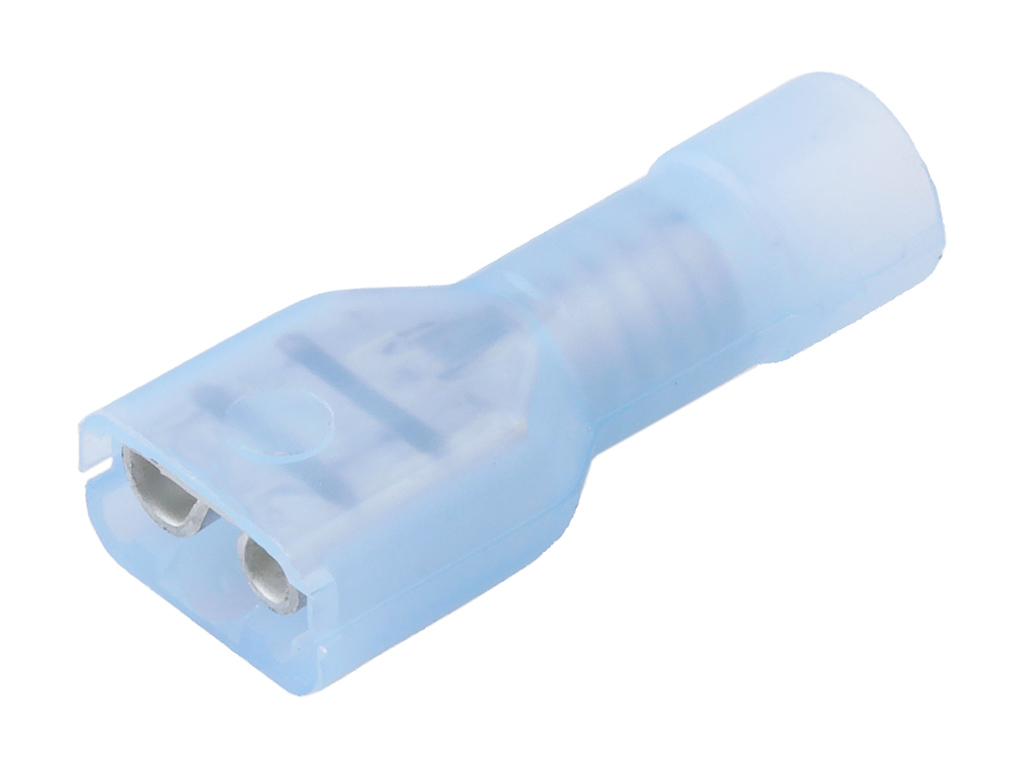

190030050 InsulKrimp by Molex
InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Tab 4.75 x 0.51mm, Blue, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0050,
0190030050, BB-2207 |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.12
|
33,684
in stock
|
Buy Now |
|
TTI Americas
from US$0.12
|
5,404
in stock
|
Buy Now |
|
TME
from US$0.28
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$0.26
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$0.28
|
2,700
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
2,576
in stock
|
Buy Now |
|
element14
from US$0.18
|
2,576
in stock
|
Buy Now |
|
RS Americas
from US$0.25
|
1,425
in stock
|
Buy Now |
|
Avnet America
from US$0.17
|
38
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
31,477
in stock
|
Buy Now |
|
|
RS
from US$0.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.20
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.800/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 4.06mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .187 X .020 FEMALE FIQD (BB-2 07) | Heilind Americas |
| FREC-DSC|16-14|187X020|NYL|BLU | TTI Americas |
| Terminal: flat | TME |
| Molex 19003-0050 1 St. Bag | Conrad |
| QUICK CONNECT AND DISCONNECT TERMINALS | Farnell |
| Female Disconnect, 4.75Mm, 16-14Awg, Blu | Newark Electronics |
| FEMALE DISCONNECT, 4.75MM, 16-14AWG, BLU | element14 |
| Molex 19003-0050 Spade Connector | RS |
