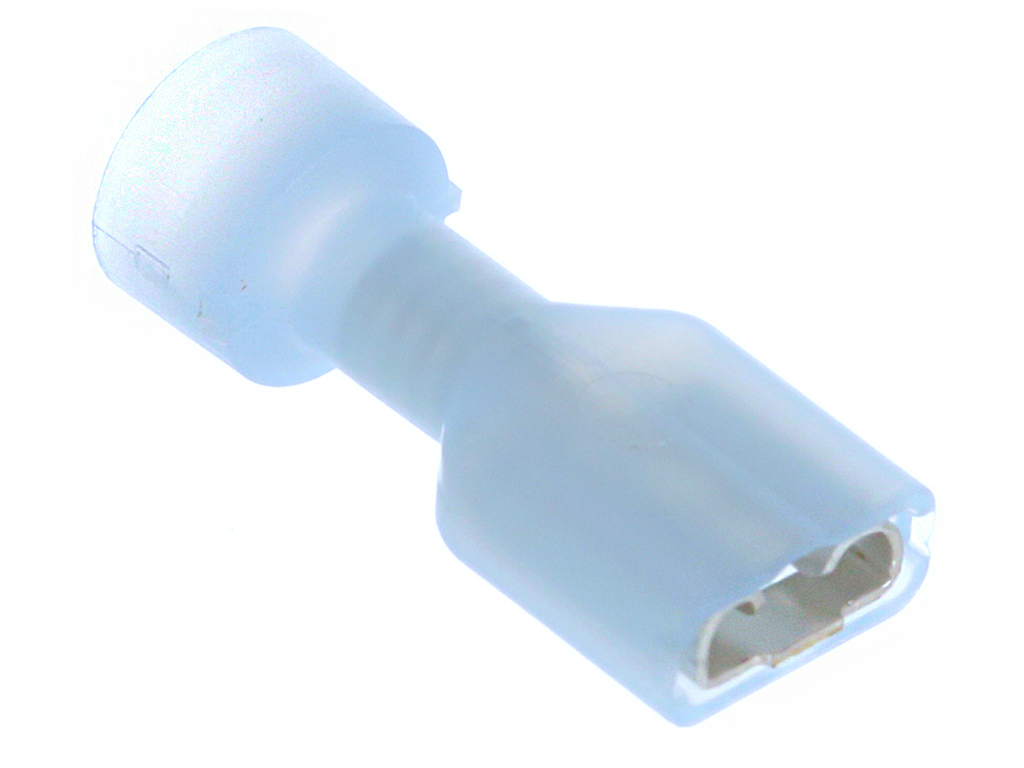

190030047 InsulKrimp by Molex
InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Box, Tab 6.35 x 0.81mm, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0047,
0190030047, BB-2206X |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.15
|
17,900
in stock
|
Buy Now |
|
Conrad
from US$0.32
|
10,906
in stock
|
Buy Now |
|
Heilind Americas
from US$0.13
|
10,863
in stock
|
Buy Now |
|
Farnell
from US$0.25
|
9,816
in stock
|
Buy Now |
|
TME
from US$0.18
|
8,656
in stock
|
Buy Now |
|
Newark Electronics
from US$0.24
|
1,304
in stock
|
Buy Now |
|
element14
from US$0.20
|
867
in stock
|
Buy Now |
|
RS
from US$0.45
|
730
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
51,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
500
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
|
EME
from US$0.21
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Blue |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.070/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 6.60mm max. |
| Wire Size Awg | 14, 16 |
| Wire Size Mm | 1.30-2.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FREC-DSC|16-14|250X032|NYL|BLU | TTI Americas |
| Molex 190030047 Flachsteckhülse 1 St. Bulk | Conrad |
| .250X.032 FEMALE FIQD EXPANDE (BB-2206X | Heilind Americas |
| CRIMP TERMINALS - CONNECT AND DISCONNECT | Farnell |
| Terminal: flat | TME |
| Female Disconnect, 6.35Mm, 16-14Awg, Blu Rohs Compliant: Yes |Molex 19003-0047 | Newark Electronics |
| FEMALE DISCONNECT, 6.35MM, 16-14AWG, BLU | element14 |
| Molex 190030047 | RS |
| Disconnect, Female | Carlton-Bates |
