190030030 InsulKrimp by Molex

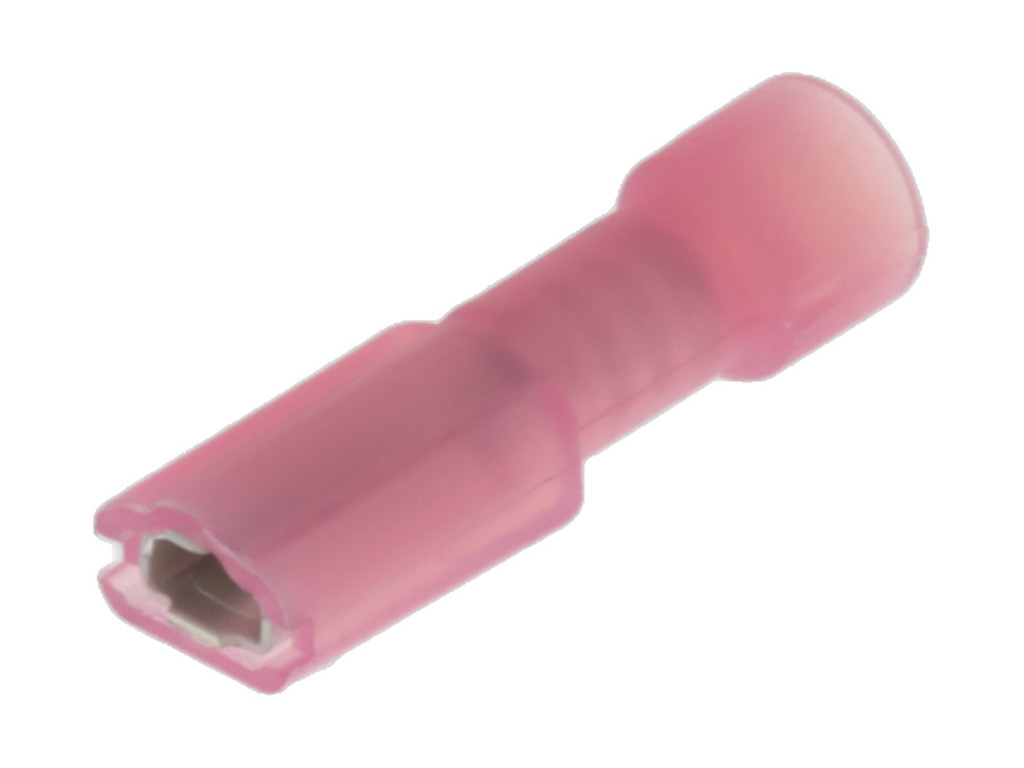

InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Tab 2.79 x 0.81mm, Pink, Carton
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0030,
0190030030, AA-2205 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.15
|
20,838
in stock
|
Buy Now |
|
RS
from US$0.42
|
4,760
in stock
|
Buy Now |
|
TME
from US$0.27
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.24
|
2,690
in stock
|
Buy Now |
|
element14
from US$0.22
|
2,690
in stock
|
Buy Now |
|
Farnell
from US$0.25
|
2,690
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.40
|
273
in stock
|
Buy Now |
|
Conrad
from US$0.39
|
213
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
740
in stock
|
Buy Now |
|
Avnet America
from US$0.14
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.32
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.15
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.24
|
0
in stock
|
Buy Now |
|
Sager
from US$0.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.20
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Pink |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.469/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 2.79mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.43mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .110 X .032 FEMALE FIQD (AA-2 05) | Heilind Americas |
| Molex 190030030 Spade Connector | RS |
| Terminal: flat | TME |
| Female Disconnect, 2.8Mm, 22-18Awg, Org | Newark Electronics |
| FEMALE DISCONNECT, 2.8MM, 22-18AWG, ORG | element14 |
| Molex 190030030 Insulkrimp Receptacle 18-22 AWG Pink 1Pc Bulk | Rapid Electronics |
| Molex 190030030 Flachsteckhülse Steckbreite: 2.79 mm Steckdicke: 0.81 mm 1 St. Bulk | Conrad |
| Quick Disconnect Terminal 18-22AWG F 19.81mm 5.84mm Electro-Tin Loose Piece | Avnet America |
| FREC-DSC|22-18|110X032|NYL|RED | TTI Americas |
| INSULKRIMP QUICK DISCONNECT | TTI Europe |
| Terminals FREC-DSC 22-18 110X032 NYL RED | Sager |
