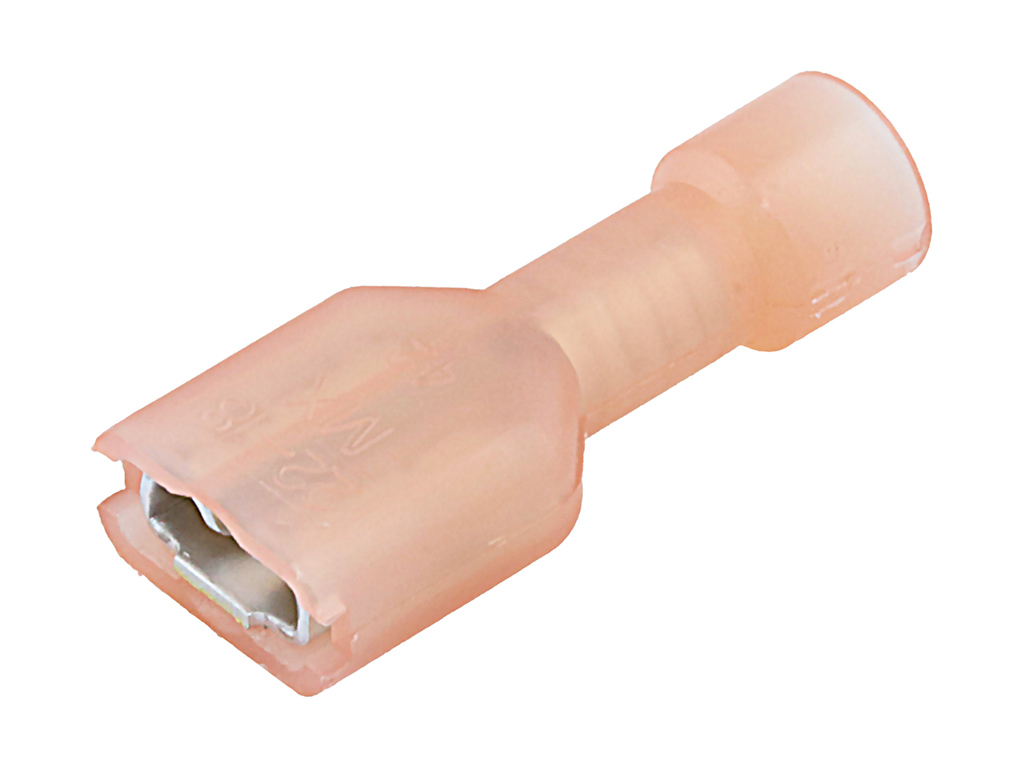

190030013 InsulKrimp by Molex
InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Mylar Tape, Tab 4.75 x 0.51mm, Salmon
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0013,
0190030013, AA-2202T |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.16
|
155,250
in stock
|
Buy Now |
|
Newark Electronics
from US$0.28
|
37,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
35,000
in stock
|
Buy Now |
|
Farnell
from US$0.36
|
34,000
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
18,000
in stock
|
Buy Now |
|
Avnet America
from US$0.19
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
element14
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.20
|
0
in stock
|
Buy Now |
|
EME
from US$0.36
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Salmon |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.685/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.51mm |
| Tab Width | 4.75mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.43mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 187X 020 FEMALE RED FIQD TAPE AA-2202T | Heilind Americas |
| Terminal, Female Disconnect, 0.187In Red | Newark Electronics |
| FREC-DSC|22-18|187X020|NYL|RED | TTI Americas |
| FEMALE QUICK DISCONNECT, 22-18AWG, RED | Farnell |
| Quick Disconnect Terminal 18-22AWG F 19.81mm 8.02mm Electro-Tin Mylar Tape | Avnet America |
| 187X 020 FEMALE RED FIQD TAPED | RS Americas |
| CRIMP TERMINAL | element14 |
