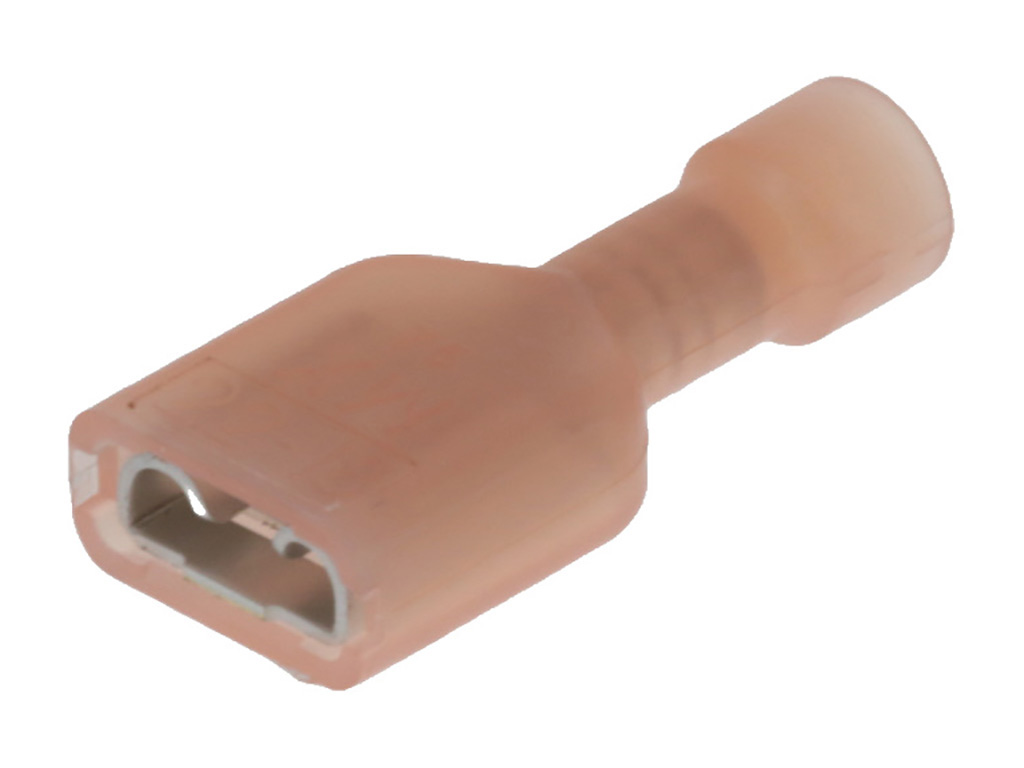

190030003 InsulKrimp by Molex
InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Mylar Tape, Tab 6.35 x 0.81mm, Salmon
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
19003-0003,
0190030003, AA-2201T |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.21
|
61,500
in stock
|
Buy Now |
|
TME
from US$0.27
|
51,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.21
|
27,000
in stock
|
Buy Now |
|
Farnell
from US$0.34
|
25,200
in stock
|
Buy Now |
|
RS
from US$0.38
|
3,779
in stock
|
Buy Now |
|
|
RS Americas
from US$0.20
|
1,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.31
|
247
in stock
|
Buy Now |
|
element14
from US$0.44
|
162
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
28,000
in stock
|
Buy Now |
|
Avnet America
from US$0.24
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.21
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | InsulKrimp |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Barrel Type | Closed |
| Color Resin | Salmon |
| Flammability | 94V-2 |
| Gender | Female |
| Glow Wire Capable | No |
| Insulated | Fully |
| Insulation | Nylon (PA) |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.917/g |
| Orientation | Straight |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | No |
| Tab Thickness | 0.81mm |
| Tab Width | 6.35mm |
| Temperature Range Operating | -65° to +105°C |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.43mm max. |
| Wire Size Awg | 18, 20, 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .250 X .032 FEMALE FIQD TAPED (AA-2201T) | Heilind Americas |
| Terminal: flat | TME |
| FREC-DSC|22-18|250X032|NYL|RED | TTI Americas |
| CRIMP TERMINALS - CONNECT AND DISCONNECT | Farnell |
| Molex 190030003 Spade Connector | RS |
| CONN | RS Americas |
| Female Disconnect, 6.35Mm, 22-18Awg, Red | Newark Electronics |
| FEMALE DISCONNECT, 6.35MM, 22-18AWG, RED | element14 |
| Quick Disconnect Terminal, InsulKrimp 19003, Female Quick Disconnect, 6.35mm x 0.81mm | Avnet America |
| QUICK DISCONNECT FEMALE(22-18) | TTI Europe |
